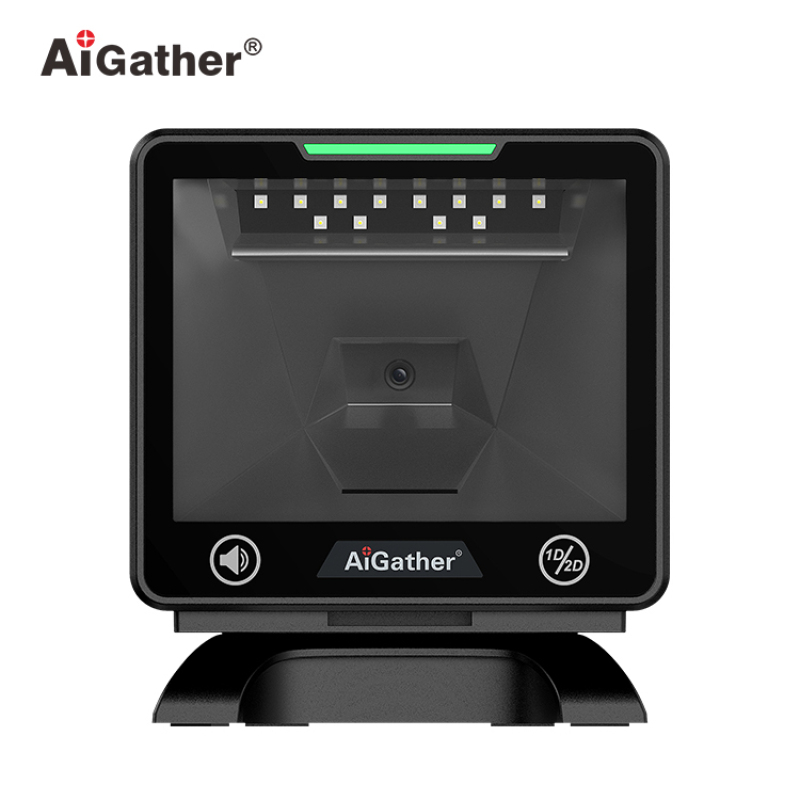

A-90 Desktop Wired 2D Barcode Scanner
Cat OnlineA-90 Features
A-90 is a desktop CMOS barcode scanner with stylish appearance and exquisite workmanship. Equipped with AiGather’s patented advanced decoding algorithm, combined with a new decoding chip and a megapixel camera, as well as a 2M/S motion tolerance and a large reading window, it can easily handle various high-speed scanning operations.
And in different application scenarios, it also has excellent performance capabilities. The embedded shell design can be easily connected to the cashier counter. The clear scanning prompt sound and LED indication enable it to have accurate prompts even in noisy environments.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED Red light (Osram from Germany) | ||
| Image sensor | 1.3 Million pixels Global Shutter | ||
| Resolution(maximum) | 0.102mm / 4mils | ||
| Print contrast ratio(minimum) | ≥20% | ||
| Motion tolerance | 2M/sec | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±65° | ||
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | ||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume) | ||
| Typical depth of Field | Precision Barcode Depth of Field 5mil CODE128 0mm—90mm 5mil EAN-13 0mm—90mm 13.34mil EAN-13 0mm—280mm 10mil QR 0mm—110mm 10mil PDF417 0mm—260mm 20mil QR 0mm—200mm 20mil DM 5mm—110mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Electrical Parameter | |||
| Current | Working current（Standard): < 430 mA Standby current（Standard): < 220 mA | ||
| Input Voltage | 5 VDC (+/- 10%) | ||
| Environmental Parameter | |||
| ESD protection | Touch 8 kV; Air 15kV | ||
| Temperature | Operation: -10 to 50 °C Storage/Transport: -20 to 65 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | Ambient light | ||
| Interfaces | |||
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs | ||
| Warranty | |||
| Warranty | 2years warranty | ||
