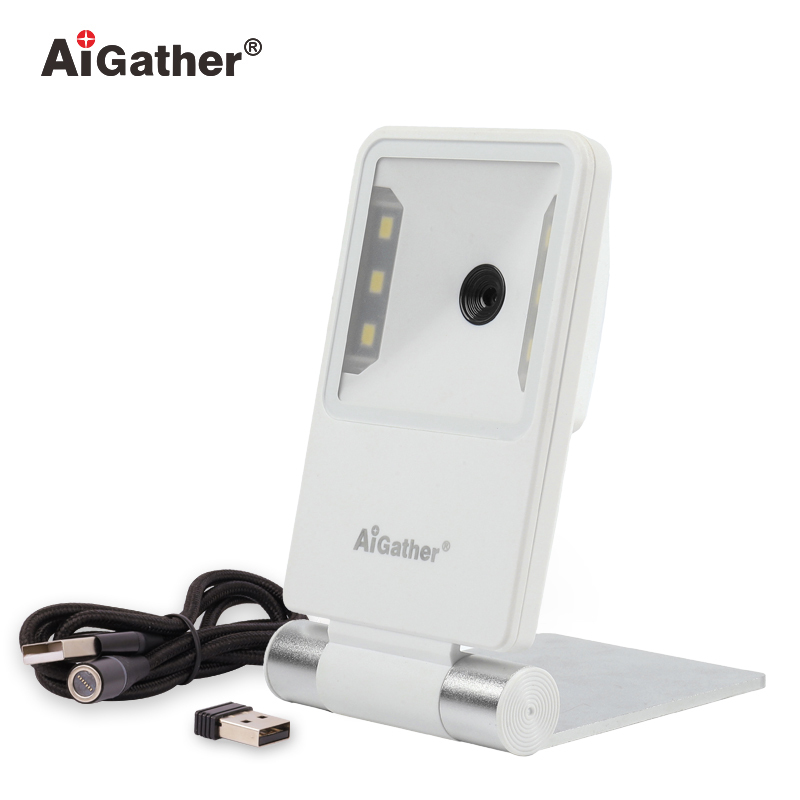

A-22 Desktop Wireless 2D Barcode Scanner
Cat OnlineA-22 Features
1. A-22 is equipped with AiGather’s patented advanced decoding algorithm and has a large reading angle, which makes it an extremely smooth decoding experience during scanning;
2. Quickly read screen codes and paper codes, supporting to read paper codes with a printing contrast of more than 20% and various damaged, wrinkled, or poor-quality product barcodes;
3. Ultra-thin and foldable design achieves excellent operating comfort;
4. Supports a variety of keyboard languages, no need driver, just plug-and-play, and compatible with all major operating systems;
5. The large-capacity battery of 2700 mAh can continuously read 120,000 commodity barcodes when fully charged;
6. Two wireless transmission methods, 2.4G and Bluetooth, are available.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED White Light | ||
| Image sensor | 640*480 pixels Global Shutter | ||
| Resolution(maximum) | 0.102mm / 4mils | ||
| Print contrast ratio(minimum) | ≥20% | ||
| Image Speed | 120FPS/S | ||
| Motion tolerance | 1.2M/sec | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 | ||
| Reading Indicators | Buzzer(adjustable tone) | ||
| Typical depth of Field | Precision Barcode Depth of Field 5mil CODE128 40mm—110mm 5mil EAN-13 40mm—110mm 13.34mil EAN-13 65mm—300mm 5mil PDF417 40mm—100mm 10mil PDF417 30mm—210mm 15mil PDF417 30mm—310mm 20mil DM 20mm—110mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Electrical Parameter | |||
| Current | Working current（Standard): < 280 mA Standby current（Standard): < 210 mA | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection | Contact discharge 8 kV; Air discharge 15 kV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Temperature | Operation: -10 to 50 °C Storage/Transport: -20 to 65 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | 0 -100,000 lux (Daylight) | ||
| Cordless Parameter | |||
| Cordless mode | 2.4G & Bluetooth | ||
| Transmission distance | 2.4G: 60~80 meters; Bluetooth: 20~30m (basic on open space) | ||
| Communication mode | Wireless real-time transmission/wired transmission/storage mode | ||
| Battery capacity | 2700mAh | ||
| Continuous working time | ＞12H, it can continuously read more than 80,000 commodity barcodes when fully charged | ||
| Charging time | 4~5H | ||
| Warranty | |||
| Warranty | 2years | ||
