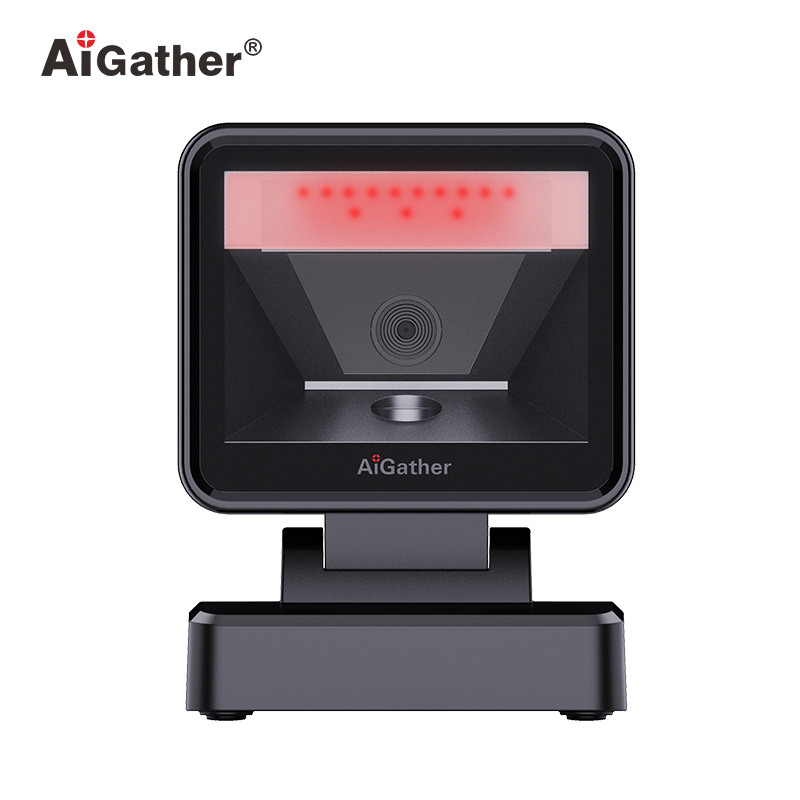

A-85 Desktop Wired 2D Barcode Scanner
Cat OnlineA-85 Feature
A-85 desktop CMOS barcode scanner is equipped with AiGather’s patented decoding algorithm software, which combines a 2m/s motion tolerance and a large FOV. It can quickly read screen codes and paper codes, help shop staff to work more effectively.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED Red light (Osram from Germany) | ||
| CPU | 1.2G Dual-core | ||
| Image sensor | 640*480 pixels Global Shutter | ||
| Image speed | 120FPS | ||
| Resolution(maximum) | 0.102mm / 3mils | ||
| Print contrast ratio(minimum) | ≥15% | ||
| Motion tolerance | 2M/sec | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Angle of field of view | Horizontal: 50°; Vertical: 38° | ||
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | ||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume) | ||
| Typical depth of Field | Precision Barcode Depth of Field 3mil CODE128 0mm—30mm 3mil EAN-13 0mm—30mm 5mil PDF417 0mm—30mm 5mil CODE128 0mm—70mm 5mil EAN-13 0mm—70mm 5mil PDF417 0mm—65mm 13.34mil EAN-13 0mm—180mm 10mil CODE128 0mm—150mm 10mil PDF417 0mm—140mm 20mil QR 0mm—160mm 20mil DM 0mm—140mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Electrical Parameter | |||
| Current | Working current（Standard): < 300 mA Standby current（Standard): < 210 mA | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection | Touch 8 kV; Air 15kV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Particulate and water sealing | IP52 | ||
| Temperature | Operation: -10 to 50 °C Storage/Transport: -40 to 70 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | 0 -100,000 lux | ||
| Interfaces | |||
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs | ||
| Warranty | |||
| Warranty | 2years warranty | ||
