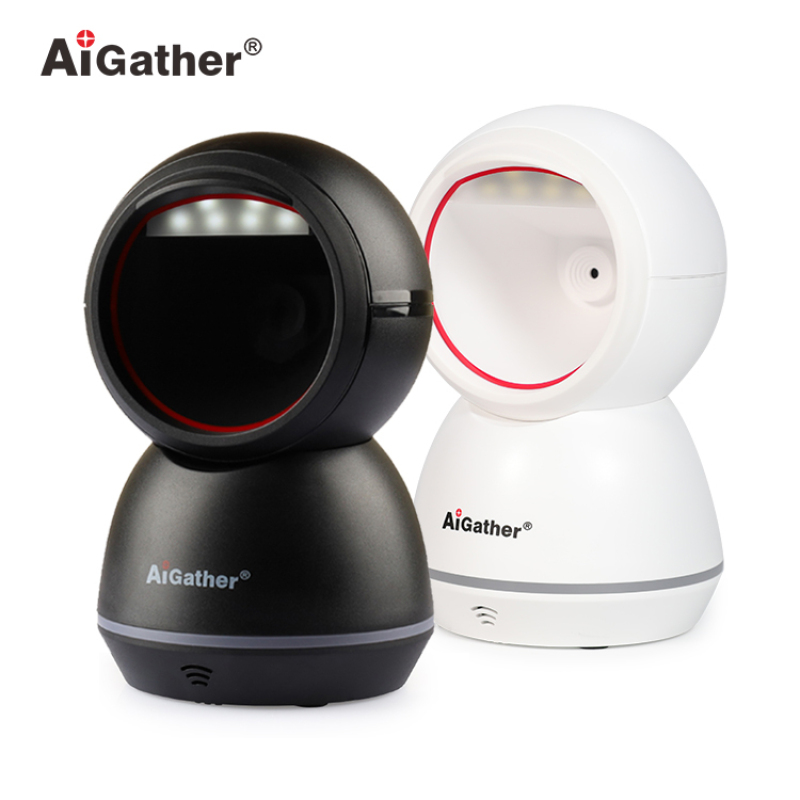

A-700+ Desktop Wired 2D Barcode Scanner
Cat OnlineA-700+ Features
A-700+ is equipped with AiGather’s patented advanced decoding algorithm software, and combines a 2m/s motion tolerance and a large reading angle to deliver an extremely smooth decoding experience in the moving barcode. It can quickly read various LCD and OLED screen codes and printed product codes, expanding the scope of decoding applications and improving decoding efficiency.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED White LED | ||
| Image sensor | 640*480 pixels Global Shutter | ||
| Resolution(maximum) | 0.102mm / 3mils | ||
| Print contrast ratio(minimum) | ≥15% Reflection Difference | ||
| CPU | 1.2G Dual-core | ||
| Motion tolerance | 2M/sec | ||
| Image Field of View | D54°/H45°/V36° | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | ||
| Reading Indicators | LED/Buzzer(adjustable tone） | ||
| Typical depth of Field | Precision Barcode Depth of Field 3mil CODE128 0mm—30mm 3mil EAN-13 0mm—30mm 5mil PDF417 0mm—30mm 5mil CODE128 0mm—70mm 5mil EAN-13 0mm—70mm 5mil PDF417 0mm—65mm 13.34mil EAN-13 0mm—180mm 10mil CODE128 0mm—150mm 10mil PDF417 0mm—140mm 20mil QR 0mm—160mm 20mil DM 0mm—140mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Physical characteristics | |||
| Color available | White; Black | ||
| Dimensions(L*W*H) | 98*105.55*157.06mm | ||
| Weight | 278g | ||
| Cable | 1.6M | ||
| Electrical Parameter | |||
| Current | Working current（Standard): | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection | Contact discharge 8 kV; Air discharge 15KV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Temperature | Operation: -10 to 50 °C Storage/Transport: -20 to 65 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | 0 -100,000 lux | ||
| Interfaces | |||
| Interfaces | RS-232; USB HID; USB COM;HID POS available as per customer’s needs | ||
| Warranty | |||
| Warranty | 2years | ||
