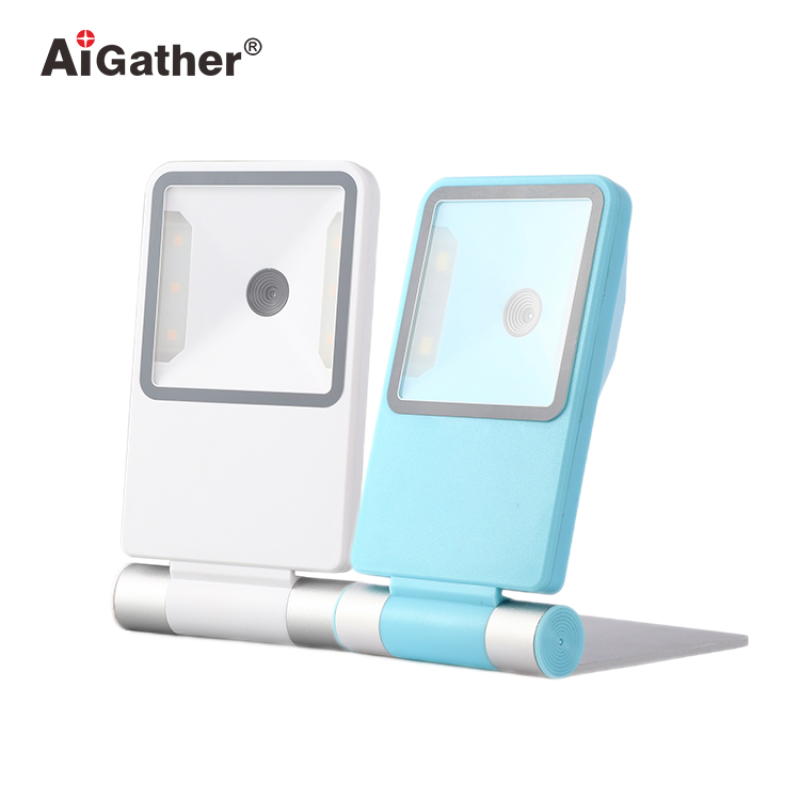

A-20+ Desktop Wired 2D Barcode Scanner
Cat Online| Performance Parameter | |||
|---|---|---|---|
| Material | ABS+PC | ||
| Light Source | LED White Light | ||
| Image sensor | 640*480 pixels Global Shutter | ||
| Resolution(maximum) | 4mil | ||
| Print contrast ratio(minimum) | ≥15% | ||
| CPU | 1.2G | ||
| Imaging Speed | 120 fps | ||
| Motion tolerance | 1.2M/sec | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | 1D.All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D.Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code.GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 |
||
| Reading Indicators | LED light & Buzzer(adjustable tone and volume) | ||
| Typical Depth of Field | Precision Barcode Depth of Field 5mil CODE128 40mm—110mm 5mil EAN-13 40mm—110mm 13.34mil EAN-13 65mm—300mm 5mil PDF417 40mm—100mm 10mil PDF417 30mm—210mm 15mil PDF417 30mm—310mm 20mil DM 20mm—110mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
||
| Physical Characteristics | |||
| Color | White/Blue | ||
| Dimensions(L*W*H) | 77*100*123mm | ||
| Weight | 209g | ||
| Cable | 1.55m | ||
| Electrical Parameter | |||
| Current | Working current(Standard): Standby current(Standard): |
||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection(Air discharge) | 8 kV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Particulate and water sealing | IP52 | ||
| Temperature | Operation: -20 to 40 °C Storage/Transport: -40 to 70 °C |
||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | 0 -100,000 lux | ||
| Interfaces | |||
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs | ||
