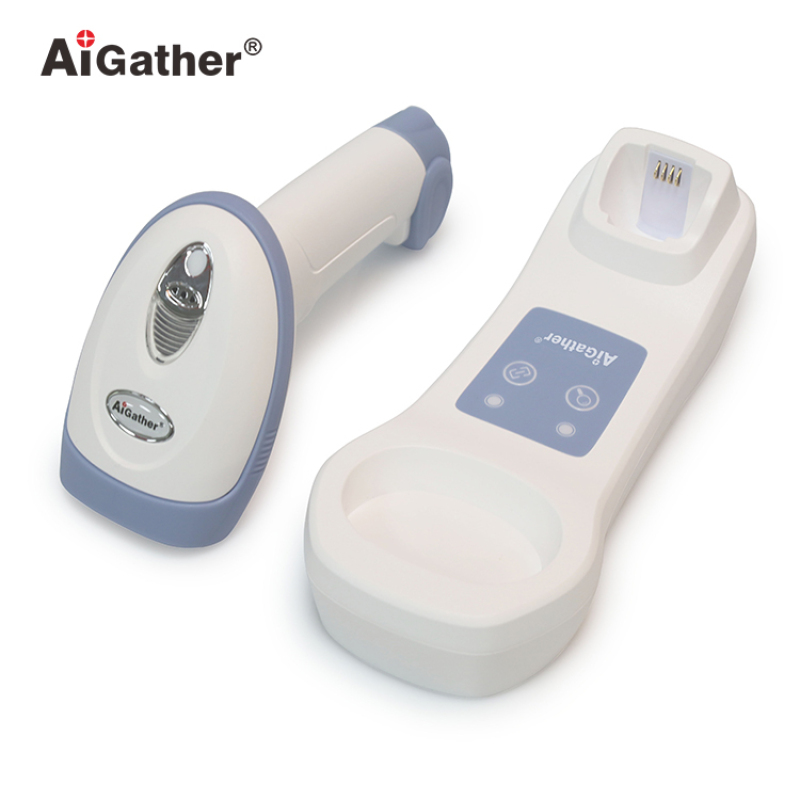

A-1900HOPSBTHD Bluetooth 2D Barcode Scanner
Cat OnlineA-1900HOPSBTHD is designed to meet a variety of scanning needs in harsh working environments, and adopts two-color mold ABS+PC+TPU and form at one time, shock-proof and anti-drop. When it falls from the desk, it will do not do harm to the scanner. Equipped with AiGather’s patented advanced decoding algorithm, it can read damaged codes, stained codes, wrinkled codes and color barcodes quickly and accurately, various of keyboard language, no driver, plug and play.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED White light | ||
| Aiming Light | Green Dot | ||
| Image sensor | 640*480 pixels Global Shutter | ||
| CPU | 1.2G Dual core | ||
| Resolution(maximum) | 3mils | ||
| Motion Tolerance | 2m/s | ||
| Print contrast ratio(minimum) | 20% Reflection Difference | ||
| Image Field of View | Horizontal: 50°; Vertical: 38° | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | 1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | ||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） | ||
| Typical depth of Field | Precision Barcode Depth of Field 3.34mil CODE 128 40mm—80mm 5mil CODE128 35mm—135mm 3.34mil EAN-13 40mm—80mm 5mil EAN-13 30mm—105mm 13.34mil EAN-13 30mm—290mm 5mil PDF417 35mm—105mm 15mil QR 20mm—155mm 10mil DM 30mm—140mm 20mil QR 30mm—265mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Electrical Parameter | |||
| Current | Working current(Standard): 80 mA ; Standby current(Standard): 130 mA | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection(Air discharge) | 8 kV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Particulate and water sealing | IP52 | ||
| Temperature | Working: 0 to 40 °C Storage: -40 to 70 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux | ||
| Cordless Parameter | |||
| Cordless mode | 2.4G, Optional Bluetooth | ||
| Transmission distance | 2.4G: 100 meters; Bluetooth: 50m (basic on open space) | ||
| Communication mode | Wireless real-time transmission/wired transmission/storage mode | ||
| Battery capacity | 2000mAh | ||
| Continuous working time | ＞12H | ||
| Charging time | 4~5H | ||
| Warranty | |||
| Warranty | 2 years | ||
