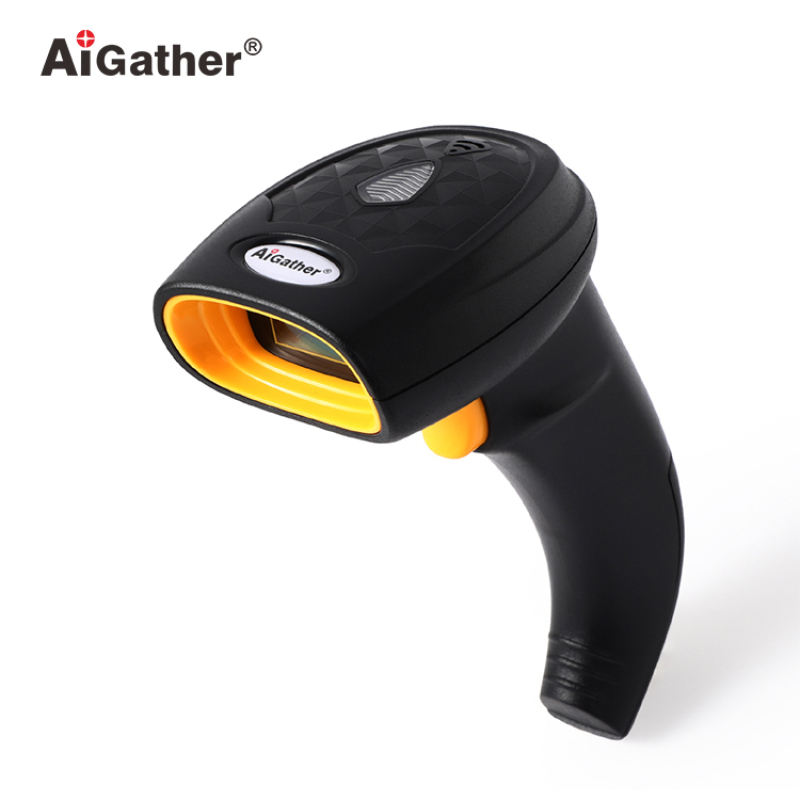

A-9516 Bluetooth 2D Barcode Scanner
Cat OnlineFeatures – Plug-and-play installation; – 300,000 pixels, minimum resolution: 4 mils; – Quick recharging, 8-10 hours of continuous scanning; – Easy to grip and comfortable fit in your hand; – Rechargeable & replaceable 2000 mAh lithium battery; – Strong anti-interference ability to ensure long transmission distance.
| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED White light | ||
| Image sensor | 640*480 pixels | ||
| Resolution(maximum) | 0.102mm / 4mils | ||
| Print contrast ratio(minimum) | ≥20% | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | ||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） | ||
| Typical depth of Filed | Precision Barcode Depth of Filed 3.34mil CODE 128 10mm—60mm 5mil CODE128 5mm—90mm 3.34mil EAN-13 10mm—55mm 5mil EAN-13 5mm—85mm 13.34mil EAN-13 20mm—190mm 5mil PDF417 5mm—75mm 10mil PDF417 5mm—190mm 15mil PDF417 10mm—200mm 10mil DM 5mm—100mm 20mil DM 5mm—210mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | ||
| Physical characteristics | |||
| Color available | Black | ||
| Dimensions（L*W*H） | 65*91*157mm | ||
| Weight | 164g | ||
| Cable | 1.6m | ||
| Electrical Parameter | |||
| Current | Working current（Standard): Standby current（Standard): | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection(Air discharge) | 8 kV | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Particulate and water sealing | IP52 | ||
| Temperature | Operation: -20 to 40 °C Storage/Transport: -40 to 70 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux | ||
| Cordless Parameter | |||
| Cordless mode | 2.4G & Bluetooth | ||
| Transmission distance | 2.4G: 80 meters; Bluetooth: 50m (basic on open space) | ||
| Communication mode | Wireless real-time transmission/wired transmission/storage mode | ||
| Battery capacity | 2000mAh | ||
| Continuous working time | >8-10H | ||
| Charging time | 4.5H | ||
