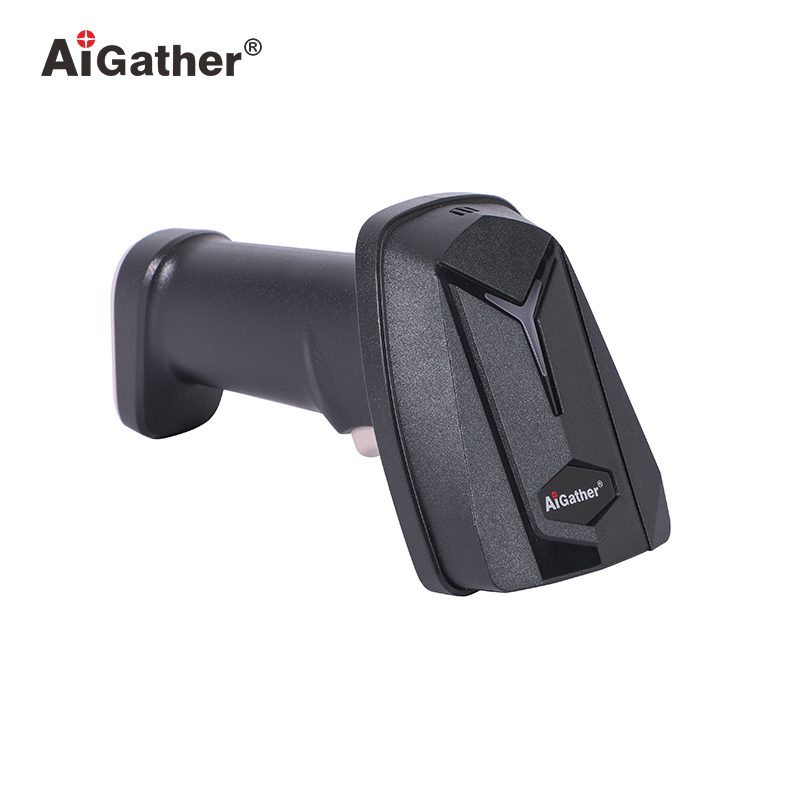

A-9546SR Wired 2D Barcode Scanner
Cat Online| Performance Parameter | |||
|---|---|---|---|
| Light Source | LED White light | ||
| Aiming Light | Green Dot | ||
| Image Sensor | 1280*800 pixels | ||
| Imaging Speed | 60FPS | ||
| CPU | 1.2G Dual core | ||
| Resolution | 3mil | ||
| Minimum Print Contrast | 15% Reflection Difference | ||
| Read Mode | Manual Trigger Mode/ Automatic Scanning Mode/ Reading Mode/ Autosense Mode | ||
| Image Field of View | D54°/H45°/V36° | ||
| Reading Angle | Pitch: +/-65°; Roll: +/-360°; Skew:+/-60° | ||
| Decoding Capability | 1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） | ||
| Typical depth of Field | Precision, Barcode, Depth of Field 3.34mil, CODE 39, 60mm—160mm 3.34mil, EAN-13, 90mm—150mm 5mil, CODE39, 70mm—240mm 5mil, EAN-13, 70mm—230mm 13mil, UPC-A, 40mm—450mm 5mil, PDF417, 65mm—210mm 5mil, QR, 75mm—140mm 10mil, QR, 45mm—290mm 10mil, DM, 30mm—260mm 20mil, QR, 20mm—480mm |
||
| Motion Tolerance | 80cm/s | ||
| Electrical Parameter | |||
| Current | Working current(Standard): < 280 mA ; Standby current(Standard): 90 mA | ||
| Input Voltage | 5V DC (+/- 5%)/500mA | ||
| Environmental Parameter | |||
| ESD protection | Air discharge: 15Kv; Contact discharge: 8Kv | ||
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. | ||
| Temperature | Working: -10 to 50 °C Storage/Transport: -20 to 65 °C |
||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux | ||
| Protection class | IP52 | ||
| Others | |||
| Interface | USB2.0, support USB HID and USB COM Optional: RS-232; HID POS(OPOS/JPOS) |
||
| Compatibility | Microsoft Windows XP/7/8/10/11, MAC, Linux, etc. | ||
| Accessory | Optional stand | ||
| Transmission | Support multi-language transmission, compatible with major operating systems | ||
| Warranty | 24 months | ||
