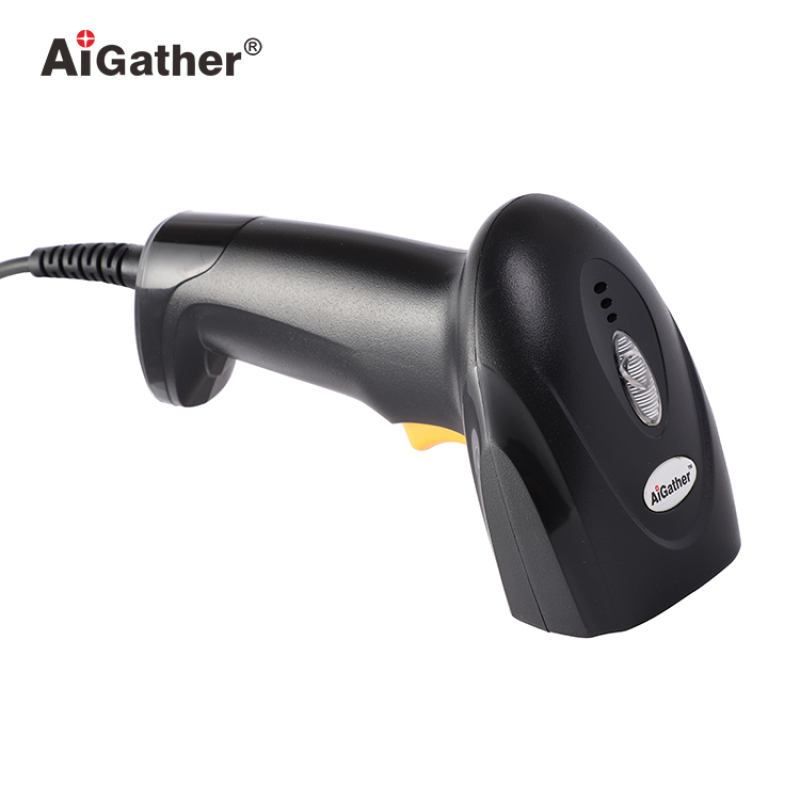

A-1695 Laser Wired 1D Barcode Scanner
Cat Online| Performance Parameter | |||
|---|---|---|---|
| Light Source | Laser | ||
| Type of Light Source | 650nm | ||
| Resolution(maximum) | 0.102mm / 4mils | ||
| Print contrast ratio(minimum) | ≥20% | ||
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° | ||
| Decoding Capability | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Code39, Code 39 Full ASCII, Interleaved 2 of 5, Matrix 2 of 5, Coda bar, Code128, Code 93, Code 11, cMSI/Plessey, UK/Plessey, UCC/EAN 128, China post, GS1 DataBar, RSS, etc. | ||
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） | ||
| Typical depth of Field | (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) Precision Depth of Filed 5mil 40mm—105mm 10mil 10mm—250mm 15mil 23mm—380mm 20mil 35mm—490mm 30mil 30mm—650mm | ||
| Electrical Parameter | |||
| Current | Working current（Standard): | ||
| Input Voltage | 5 VDC (+/- 10%)/500mA | ||
| Environmental Parameter | |||
| ESD protection(Air discharge) | 8 kV | ||
| Working Temperature | 0 to 40 °C | ||
| Temperature | Storage/Transport: -40 to 70 °C | ||
| Humidity(non-condensing) | 5 – 95% | ||
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux | ||
| Interfaces | |||
| Interfaces | RS-232; USB HID; USB COM | ||
| Other | |||
| Safety Level of Laser | EN60825-1，class 1，National first-class laser safety standard | ||
| Certificates | CE, FCC, ROHS, ISO | ||
| Warranty | 12 months | ||
