A-9533BTN Bluetooth 2D Barcode Scanner
AiGather
Designed to meet a variety of scanning needs in harsh working environments, A-9533BTN is made of ABS+PC+TPU materialS, shockproof and drop-resistant, and it will not affect the use if dropped from the desktop during normal work. Equipped with AiGather's patented advanced software decoding algorithm to meet different usage needs and keyboard languages, plug and play without driver.
Features
A-9533BTN Feature
Designed to meet a variety of scanning needs in harsh working environments, it is made of ABS+TPU material, shockproof and drop-resistant, and it will not affect the use if dropped from the desktop during normal work. The high-rebound buttons feel comfortable and easy to scan.
Equipped with AiGather's patented advanced software decoding algorithm to meet different usage needs and keyboard languages, plug and play without driver.
The base integrates wireless receiving, wireless pairing, wireless searching and wireless charging function, easy to operate. And the base can also be used as a fixed stand, freely switch between handheld mode and desktop mode.

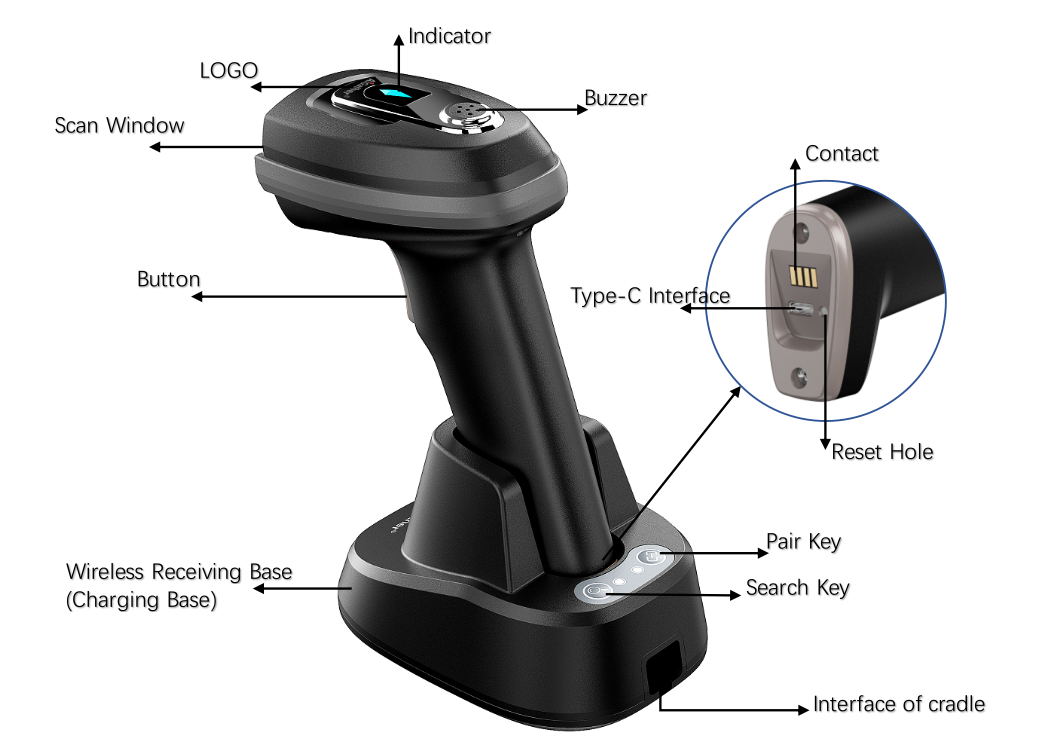

A-9533BTN Product Details
A-9533BTN Specification
Performance Parameter | ||||
Light Source |
LED White light |
|||
Aiming Light |
Green Dot |
|||
Image Sensor |
800*600 pixels |
|||
CPU |
1.2G Dual-core |
|||
Imaging Speed |
60FPS |
|||
Resolution(maximum) |
3mil |
|||
Minimum Print Contrast |
20% Reflection Difference |
|||
Imager Field of View |
D52°/ H40° /V30° |
|||
Reading Angle |
Pitch: ±65°; Roll(Tilt): 0-360°; Skew (Yaw): ±60° |
|||
Decoding Capability |
1D |
All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
||
2D |
Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code |
|||
Stack code |
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 |
|||
Reading Indicators |
LED light&Buzzer(adjustable tone and volume) |
|||
Typical depth of Field |
Precision |
Barcode |
Depth of Field |
|
3.34mil |
CODE128 |
30mm-60mm |
||
5mil |
CODE128 |
30mm-100mm |
||
3.34mil |
EAN-13 |
35mm-60mm |
||
5mil |
EAN-13 |
30mm-100mm |
||
13.34mil |
EAN-13 |
30mm-230mm |
||
5mil |
PDF417 |
30mm-100mm |
||
10mil |
QR |
30mm-150mm |
||
10mil |
DM |
20mm-125mm |
||
Electrical Parameter | ||||
Current |
Working current(Standard): |
|||
Input Voltage |
5 VDC (+/- 10%)/500mA |
|||
Environmental Parameter | ||||
ESD protection |
Contact discharge: 8 kV; Air discharge: 15kV |
|||
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
|||
Temperature |
Working: -10 to 50 °C; Storage/Transport: -20 to 70 °C |
|||
Humidity(non condensing) |
5 - 95% |
|||
Ambient light |
Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
|||
Cordless Parameter | ||||
Transmission Mode |
Wireless 2.4G and Bluetooth interface |
|||
Transmission Distance |
2.4G is 100m, Bluetooth is 50m in open space |
|||
Battery Capacity |
2000mAh |
|||
Working Time |
It can continuous working over 12 hours |
|||
| Charging time | 4~5HOURS |
|||
Application
