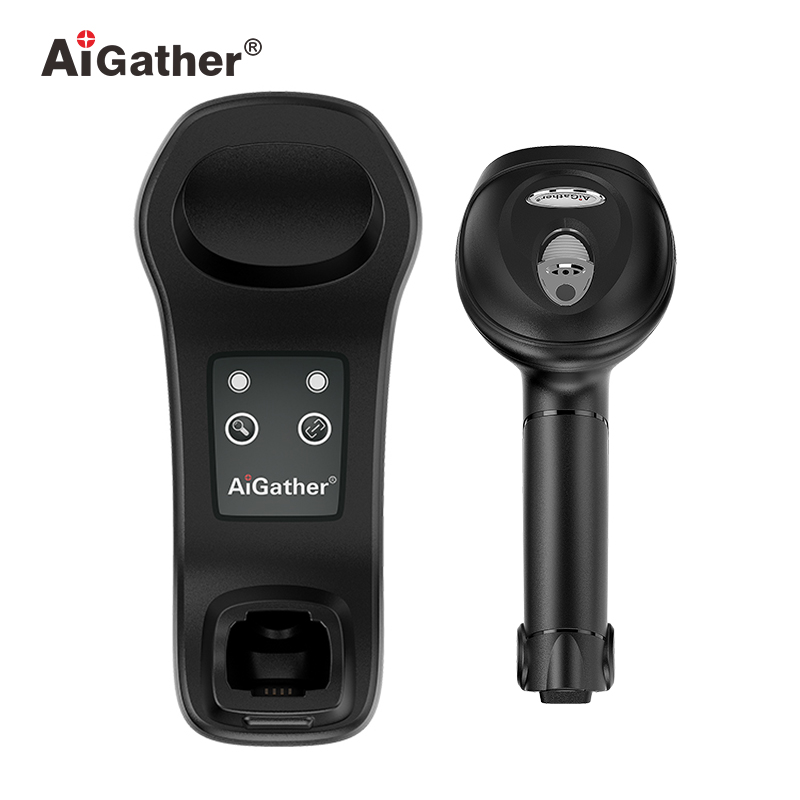

A-1900LD Industrial Wireless 2D Barcode Scanner
AiGather
A-1900LD is designed to meet a variety of scanning needs in harsh working environments, and adopts two-color mold ABS+PC+TPU and form at one time, shock-proof and anti-drop. When it falls from the desk, it will do not do harm to the scanner.
Features
A-1900LD Introduction
1. A-1900LD is designed to meet a variety of scanning needs in harsh working environments, and adopts two-color mold ABS+PC+TPU and form at one time, shock-proof and anti-drop. When it falls from the desk, it will do not do harm to the scanner.
2. Support to read mainstream 1D and 2D codes. Depending on the size and density of the barcode, the decoding distance can reach more than 10 meters.
3. Support various of keyboard language, no need driver, just plug and play.
4. Multi-functional base: one-key pairing and one-key search function, simple operation and easy to get started.
A-1900LD Specification
Performance Parameter | ||
Light Source |
LED Red light |
|
Aiming Light |
Round Dot |
|
Image sensor |
1280*800 pixels |
|
Resolution(maximum) |
3mils |
|
Print contrast ratio(minimum) |
40% Reflection Difference |
|
Angle |
Pitch: 75°; Skew: 45° |
|
Reading Angle |
Horizontal: 14°; Vertical: 8.7°; Diagonal: 16.4° |
|
Decoding Capability |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
|
|
Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Precision Barcode Depth of Field 3mil CODE 39 15cm—35cm 20mil CODE 39 16cm—210cm 13mil EAN-13 15cm—145cm 10mil DM 15cm—90cm 30mil DM 25cm—310cm 55mil DM Up to 450cm 100mil DM Up to 1100cm |
|
Electrical Parameter | ||
Current |
Working (Standard): 450 mA |
|
Input Voltage |
5 VDC (+/- 10%)/500mA |
|
Environmental Parameter | ||
ESD protection |
Touch discharge is 8kV; Air discharge is 15kV |
|
Drop resistance |
Withstands repeated drops from 1.5m onto a concrete surface. |
|
Particulate and water sealing |
IP54 |
|
Temperature |
Working: 0 to 40 °C Storage: -40 to 70 °C |
|
Humidity(non-condensing) |
5 - 95% |
|
Ambient light |
Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
|
Cordless Parameter | ||
Cordless mode |
2.4G |
|
Transmission distance |
2.4G: 100 meters(basic on open space) |
|
Communication mode |
Wireless real-time transmission/wired transmission/storage mode |
|
Battery capacity |
2000mAh |
|
Continuous working time |
＞12H |
|
Charging time |
4~5H |
|
Warranty | ||
Warranty |
2 years |
|
