A-9566AI Industrial Wired 2D Barcode Scanner
AiGather
A-9566AI is a product specially designed by AiGather for manufacturing and commercial application environments that require high-precision barcode scanning. It has a 100-pixel image sensor, high-speed motion tolerance, multi-spectral technology, and a decoding algorithm with independent intellectual property rights.
Features
A-9566AI Product Introduction
1．A-9566AI is a product specially designed by AiGather for manufacturing and commercial application environments that require high-precision barcode scanning. It has a 100-pixel image sensor, high-speed motion tolerance, multi-spectral technology, and a decoding algorithm with independent intellectual property rights. It has excellent reading performance for barcodes generated by laser etching, machine impact, inkjet printing, and chemical corrosion on the surface of different materials.
2．The A-9566AI is equipped with laser cross aiming, which can accurately locate the bar code in a multi-bar code environment to prevent accidental scanning.
3．The vibration mode also has scanning feedback in noisy environments.
4．Multi-spectral fill light can easily read barcodes of different colors and 15% contrast.
A-9566AI Specification
Performance Parameter | |
Light Source |
LED red and blue double color |
Sensor |
1280*800 pixels Global Shutter |
Precision |
Max. 3mil |
Print Contrast Ratio(minimum) |
≥15% |
Motion Tolerance |
2M/s |
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
Decoding Capability |
All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;GS1 DataBar Composite; MicroPDF417; PDF417 |
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
Typical Depth of Field |
Precision Barcode Depth of Field 3.34mil CODE128 50mm—110mm 5mil CODE128 40mm—120mm 3.34mil EAN-13 50mm—120mm 5mil EAN-13 40mm—120mm 13.34mil EAN-13 20mm—190mm 5mil PDF417 50mm—120mm 10mil PDF417 25mm—170mm 10mil DM 40mm—150mm 20mil DM 20mm—190mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Physical characteristics | |
Current |
Working: less than 460 mA; Standby: less than 60 mA |
Input Voltage |
5 VDC (+/- 10%)/500mA |
Environmental Parameter | |
ESD Protection |
Air discharge: 15Kv; Contact discharge: 8Kv |
Drop Resistance |
Withstands repeated drops from 1.5m onto a concrete surface. |
Temperature |
Storage/transportation: -40 to 70 °C |
Operating Temperature |
-20 ~ 50 °C |
Humidity(non-condensing) |
5 - 95% |
Ambient Light |
100,000 lux |
Others | |
Interfaces |
RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
Warranty |
2 years |

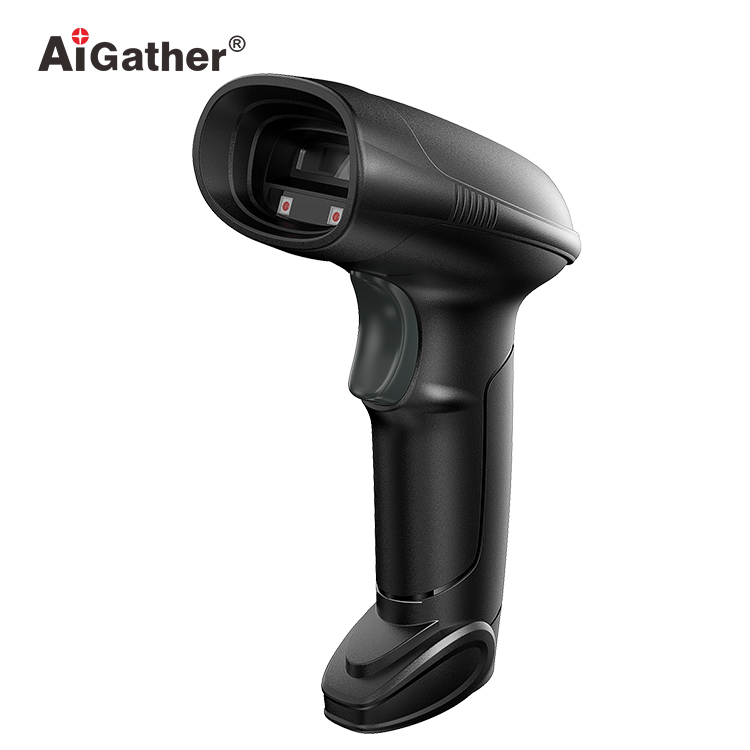

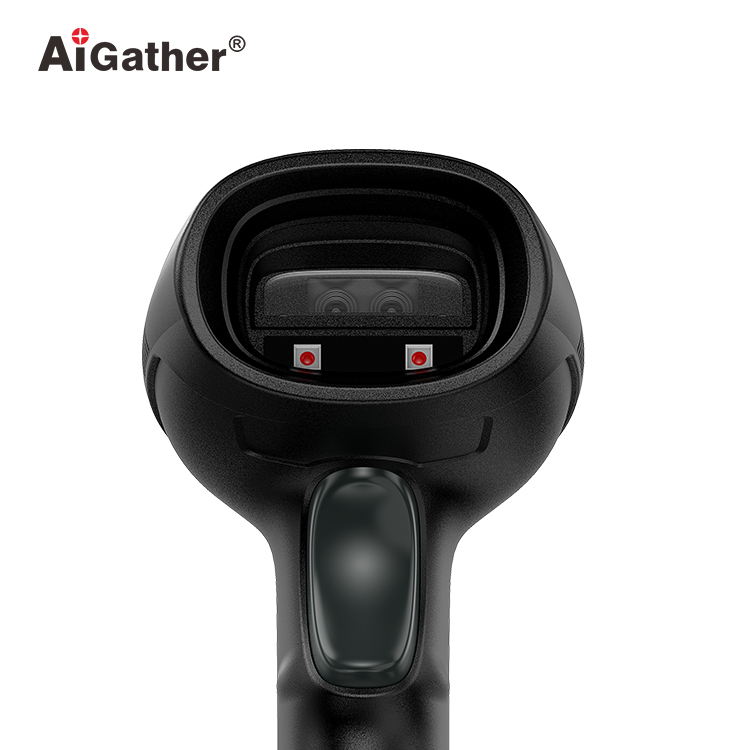

A-9566AI Details
Application
