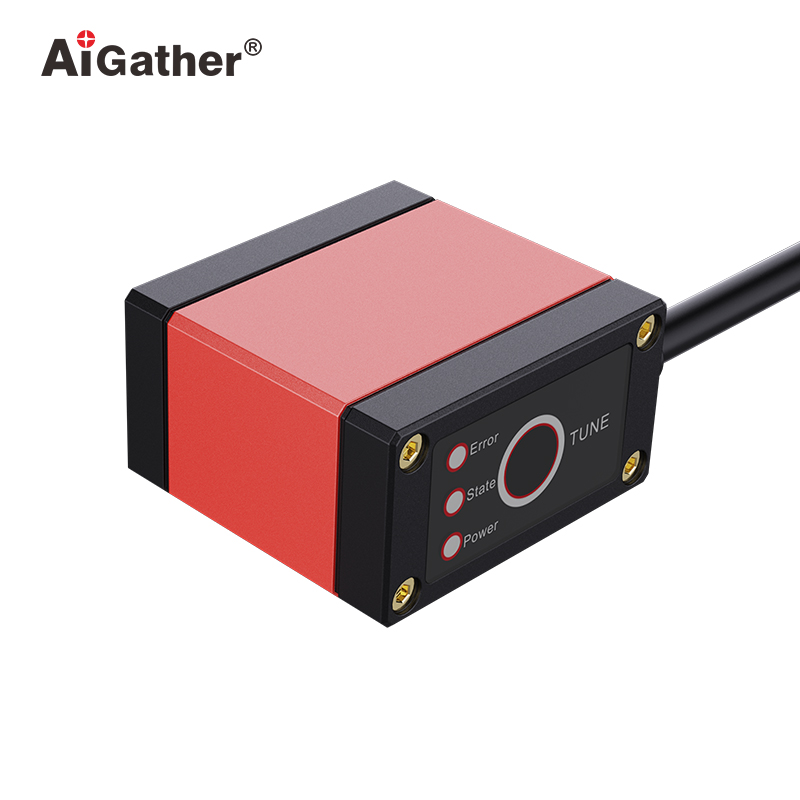

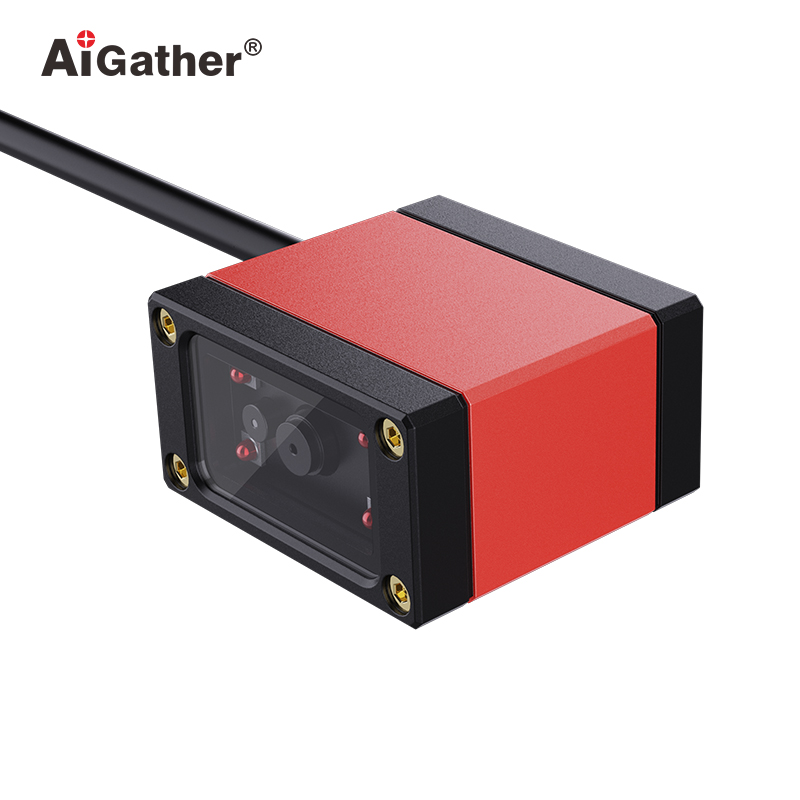

A-G6 Fixed Mount 2D Barcode Scanner
AiGather
A-G6 is one fixed 2D barcode scanner suitable for general industrial environments. Equipped with a 1.2G dual-core processor and a CMOS image sensor with motion tolerance, it has excellent barcode scanning speed and depth of field for both static and moving barcodes.
Features
A-G6 Features
l A-G6 is one fixed 2D barcode scanner suitable for general industrial environments.
l Equipped with a 1.2G dual-core processor and a CMOS image sensor with motion tolerance, it has excellent barcode scanning speed and depth of field for both static and moving barcodes.
l Supports automatic reading, inductive reading and command control. Its compact body can be flexibly installed on various devices without any space restrictions.
l Professional electrostatic protection and anti-interference design, can be used normally in complex electromagnetic environment.
A-G6 Specification
Performance Parameter |
HD |
SR |
Light Source |
LED Red Light (standard); Red and White (optional); Red and Blue (optional) |
|
Aiming Light |
Laser “+” cross sight light |
|
Image Sensor |
1280*800pixels (Global Shutter) |
|
CPU |
1.2G Dual-core | |
Resolution(maximum) |
3mil |
|
Minimum Print Contrast |
15% Reflection Difference |
|
Motion Tolerance |
2M/S |
|
Image Field of View |
Horizontal: 42°; Vertical: 32° |
|
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
|
Decoding Capability |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
|
|
Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Precision Barcode Depth of Field 3.34mil CODE 128 50mm—110mm 5mil CODE128 40mm—120mm 3.34mil EAN-13 50mm—120mm 5mil EAN-13 40mm—120mm 13.34mil EAN-13 20mm—190mm 5mil PDF417 50mm—120mm 10mil DM 40mm—150mm |
Depth of Field 120mm—160mm 100mm—210mm 120mm—160mm 100mm—220mm 60mm—470mm 100mm—210mm 90mm—240mm |
Electrical Parameter | ||
Current |
Working current(Standard): |
|
Input Voltage |
5 VDC (+/- 10%)/500mA |
|
Environmental Parameter | ||
ESD protection |
Air discharge: 15Kv; Contact discharge: 8Kv |
|
Drop resistance |
Withstands repeated drops from 1.5m/4.0 ft onto a concrete surface. |
|
Temperature |
Working: -10 to 50 °C; Storage/Transport: -20 to 65°C |
|
Humidity(non-condensing) |
5 - 95% |
|
Ambient light |
0 to 100,000 lux |
|
Product Size |
38*40*22mm |
|
Interfaces |
RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
|
Transmission |
Support multi-language transmission, compatible with major operating systems, support the editing of barcode data. | |
