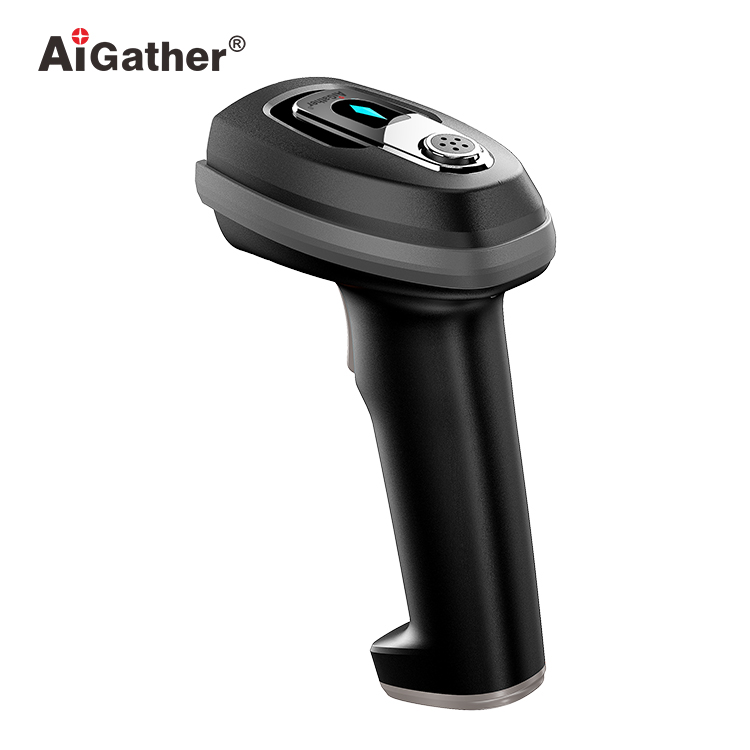

A-9530XD Wired 2D Barcode Scanner


Equipped with the advanced decoding algorithm patented by AiGather, it uses a new scan engine with 2m/s motion tolerance, can be easy to read barcode, qr code, DM, PDF417, etc.


A-9530XD Features


The layered appearance and the mirror design on the top create a new aesthetic experience. The new button design with the high-rebound switch components, the handle perfectly fits the palms of different sizes.

Equipped with the advanced decoding algorithm patented by AiGather, easy to read barcode, qr code, DM, PDF417, etc.

Global shutter, combined with 2m/s motion tolerance, can easily read moving barcodes;

For low-contrast barcodes, damaged/wrinkled/irregular/poor printing quality barcodes, it have good reading performance;

Support many keyboard languages, no need driver, just plug and play, compatible with major operating systems;

Professional electrostatic protection and anti-interference design, can be used normally in complex electromagnetic environment.

A-9530XD Specification

Performance Parameter

Light Source

LED White light

Aiming Light

Green Dot

Image Sensor

1280*800 pixels (Global Shutter)


1.2G Dual core



Minimum Print Contrast

15% Reflection Difference

Motion Tolerance


Image Field of View

Horizontal: 42°; Vertical: 32°; Diagonal: 50°

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED light&Buzzer(adjustable tone and volume

Typical depth of Field

Precision     Barcode    Depth of Field

3.34mil        CODE 128   120mm—160mm

5mil            CODE128    100mm—210mm

3.34mil      EAN-13      120mm—160mm

5mil            EAN-13      100mm—220mm

13.34mil     EAN-13     60mm—470mm

5mil            PDF417      100mm—210mm

10mil        QR           90mm—280mm

10mil        DM          90mm—240mm

20mil        QR          60mm—440mm

 (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter


Working current(Standard): 90 mA

Input Voltage

5 VDC (+/- 5%)/500mA

Environmental Parameter

ESD protection

Air discharge: 15Kv; Contact discharge: 8Kv

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Particulate and water sealing



Working: -20 to 40 °C; Storage/Transport: -40 to 70 °C


5 - 95%

Ambient light

Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux

Product Size



RS-232; USB HID; USB COM; HID POS available as per customer’s needs


Support multi-language transmission, compatible with major operating systems, support the editing of barcode data.
