A-1900BTXD Bluetooth 2D Barcode Scanner
AiGather
A-1900BTXD is designed to meet a variety of scanning needs in harsh working environments, and adopts two-color mold ABS+PC+TPU and form at one time, shock-proof and anti-drop. Equipped with AiGather's patented advanced decoding algorithm and using a new scan engine, it can read damaged codes, stained codes, wrinkled codes and color barcodes quickly and accurately.
Features
A-1900BTXD Introduction
A-1900BTXD is designed to meet a variety of scanning needs in harsh working environments, and adopts two-color mold ABS+PC+TPU and form at one time, shock-proof and anti-drop. When it falls from the desk, it will do not do harm to the scanner. Equipped with AiGather's patented advanced decoding algorithm, it can read damaged codes, stained codes, wrinkled codes and color barcodes quickly and accurately, various of keyboard language, no driver, plug and play, one-key pairing and one-key search function, simple operation and easy to get started.

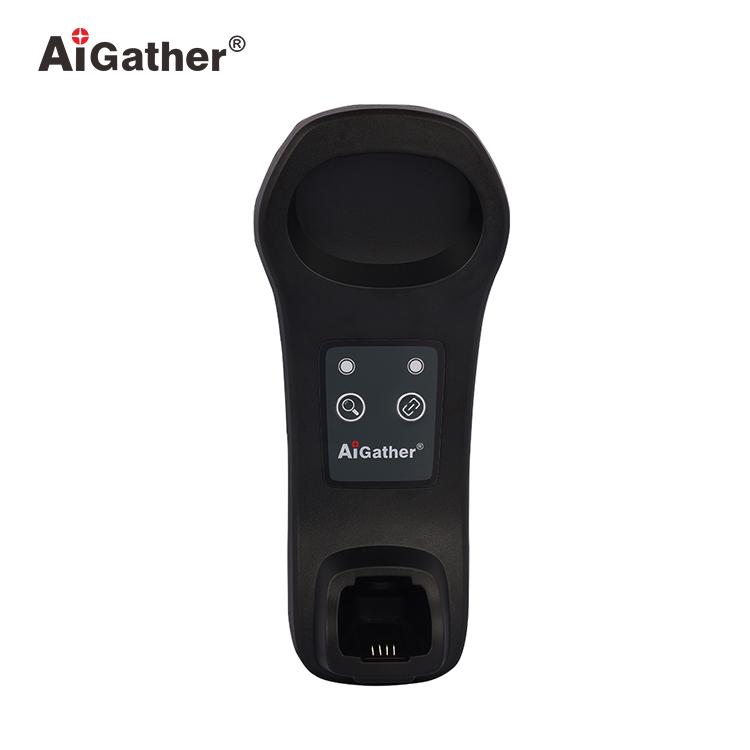

A-1900BTXD Base Features
l One Key Pairing
The one-key pairing function can quickly connect the scanner and the wireless base.
1. Connected the wireless base and the computer with a Data Cable. When power is ON, the power indicator will be always on;
2. Put the scanner into the wireless base, press the button of the scanner , the scanner will be turned on and with a prompt sound;
3. Press the one-key pairing button, the scanner will automatically pair with the base, and there will be a beep sound after the pairing is successful;
4. After the pairing is successful, the indicator light on the top of the scanner turns blue, and the "wireless connection indicator" on the wireless receiving base is always on.
l One Key Searching
When you forget where the scanner is, or mix them together, you just need to press the "one-key searching button", then the paired scanner will have 3 beeps to remind you to identify them. After you found it, you just need to press the button on barcode scanner to stop the beep voice.
l Factory Default Settings
Press pairing and searching buttons together can recover the barcode scanner to Factory default settings.
A-1900BTXD Specification
Performance Parameter | ||
Light Source |
LED White light |
|
Aiming Light |
Green Dot |
|
Image sensor |
1280*800 pixels Global Shutter |
|
CPU |
1.2G Dual core |
|
Resolution(maximum) |
3mils |
|
Motion Tolerance |
2m/s |
|
Print contrast ratio(minimum) |
15% Reflection Difference |
|
Image Field of View |
D50°/H42°/V32° |
|
Reading Angle |
Pitch: +/-65°; Roll: +/-360°; Skew:+/-60° |
|
Decoding Capability |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
|
Typical depth of Field |
Precision Barcode Depth of Field 3.34mil CODE 128 120mm—160mm 5mil CODE128 100mm—210mm 3.34mil EAN-13 120mm—160mm 5mil EAN-13 100mm—220mm 13.34mil EAN-13 60mm—470mm 5mil PDF417 100mm—210mm |
Precision Barcode Depth of Field 10mil DM 90mm—240mm 20mil QR 60mm—440mm 7mil 120mm length barcode Support (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Electrical Parameter | ||
Current |
Working current(Standard): 80 mA ; Standby current(Standard): 110 mA |
|
Input Voltage |
5 VDC (+/- 10%)/500mA |
|
Environmental Parameter | ||
ESD protection |
Air discharge: 15Kv; Contact discharge: 8Kv |
|
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
|
Particulate and water sealing |
IP54 |
|
Temperature |
Working: 0 to 40 °C; Storage: -40 to 70 °C |
|
Humidity(non-condensing) |
5 - 95% |
|
Ambient light |
Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
|
Cordless Parameter | ||
Cordless mode |
2.4G & Bluetooth |
|
Transmission distance |
80~100m for 2.4G base, 50m for bluetooth (basic on open space) |
|
Communication mode |
Wireless real-time transmission/wired transmission/storage mode |
|
Battery capacity |
2000mAh |
|
Continuous working time |
＞12H |
|
Charging time |
4~5H |
|
