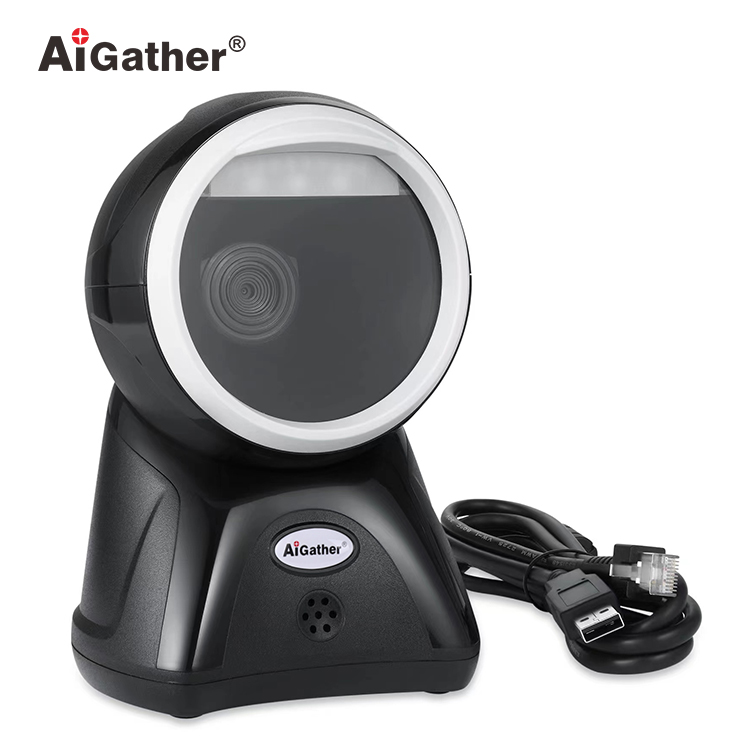

A-80+ Desktop Wired 2D Barcode Scanner

AiGather

Equipped with AiGather's patented advanced decoding algorithm software, combined with a 2m/s motion tolerance and a large reading angle, it delivers an extremely smooth decoding experience.

Features

A-80+ Features



1. Equipped with AiGather's patented advanced decoding algorithm software, combined with a 2m/s motion tolerance and a large reading angle, it delivers an extremely smooth decoding experience;

2. No need to switch the scanning mode, quickly read screen codes and printed codes, support printed codes with a printing contrast of more than 15% and various damaged, wrinkled, or poor printing quality product barcodes;

3. Humanized design: when using it in a sitting position, you can rotate the window to face the desktop to avoid direct light; when idle, you can press the top switch to turn off the fill light to prevent eye fatigue; when working, press the top switch to turn on the fill light for better reading;

4. A-80+ can be compatible with many operating systems, like Windows, Mac OS, Linux, Android and iOS; besides USB interface are standard, RS-232 and HID POS for option.


A-80+ Specification

Specification

A-80+

Common Parameter

Light Source: LED Red light (Osram from Germany)

Aiming Light: NO

Reading Angle: Pitch: +/-65°; Roll: +/-360°; Skew:+/-60°

Ambient Light: 100,000 Lux

IP Level: IP 52

Drop Resistance: 1.2m

Decoding Capability

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR CodeStack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Scanner Size

112*101*164mm

Image Sensor

640*480 pixels

Min. Print Contrast

15%

Precision

3mil

Imager Field of View

D54°/H45°/V36°

Shutter Mode

Global

3.34mil        CODE128

0-30mm

5mil             CODE128

0-70mm

3.34mil        EAN-13

0-30mm

5mil             EAN-13

0-70mm

13.34mil      EAN-13

0-180mm

5mil              PDF

0-30mm

20mil            DM

0-140mm

Operating Voltage

5V ±5%

Operating Current

Less than 300 mA

Standby Current

210mA

Interface

USB HID; USB COM; RS-232, OPOS/JPOS (optional)

ESD

Air discharge: 15Kv; Contact discharge: 8Kv
