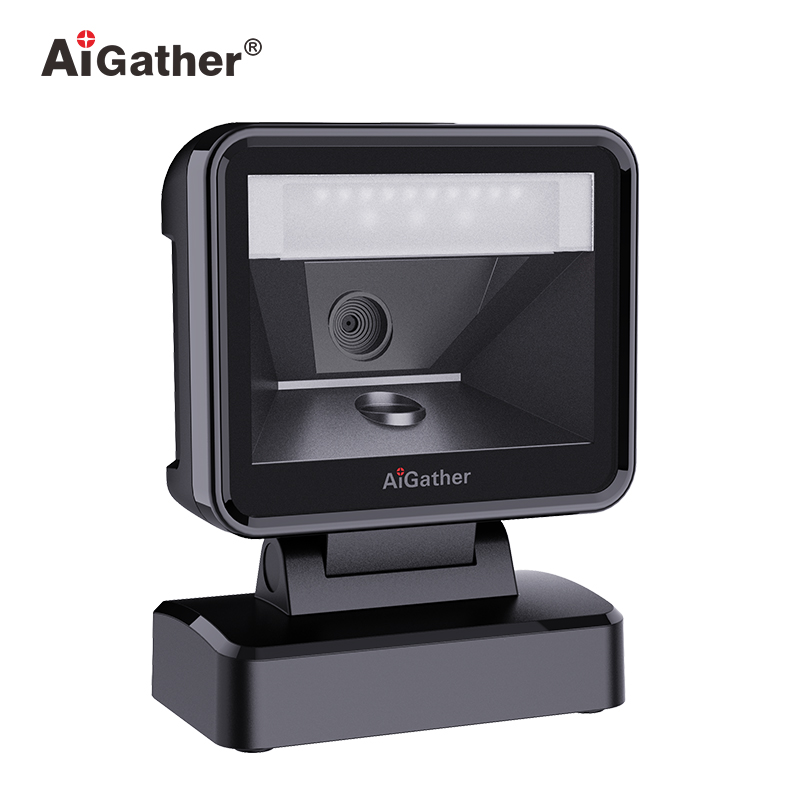

A-85 Desktop Wired 2D Barcode Scanner
AiGather
A-85 desktop CMOS barcode scanner is equipped with AiGather's patented decoding algorithm software, which combines a 2m/s motion tolerance and a large FOV. It can quickly read screen codes and paper codes, help shop staff to work more effectively.
Features
A-85 Feature
A-85 desktop CMOS barcode scanner is equipped with AiGather's patented decoding algorithm software, which combines a 2m/s motion tolerance and a large FOV. It can quickly read screen codes and paper codes, help shop staff to work more effectively.
A-85 Specification
Specification |
A-85 |
|
Common Parameter |
Light Source: LED Red light (Osram from Germany) |
Aiming Light: NO |
Reading Angle: Pitch: +/-65°; Roll: +/-360°; Skew:+/-60° |
Ambient Light: 100,000 Lux |
|
IP Level: IP 52 |
Drop Resistance: 1.2m |
|
Decoding Capability |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR CodeStack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Scanner Size |
112*68*146mm |
|
Image Sensor |
640*480 pixels |
|
Min. Print Contrast |
15% |
|
Precision |
4mil |
|
Imager Field of View |
D54°/H45°/V36° |
|
Shutter Mode |
Global |
|
5mil CODE128 |
0-70mm |
|
5mil EAN-13 |
0-70mm |
|
13.34mil EAN-13 |
0-240mm |
|
5mil PDF |
5-60mm |
|
10mil PDF |
0-170mm |
|
20mil DM |
5-80mm |
|
Operating Voltage |
5V ±5% |
|
Operating Current |
Less than 300 mA
|
|
Standby Current |
210mA |
|
Interface |
USB HID; USB COM; RS-232, OPOS/JPOS (optional) |
|
ESD |
Air discharge: 15Kv; Contact discharge: 8Kv |
|
Application
