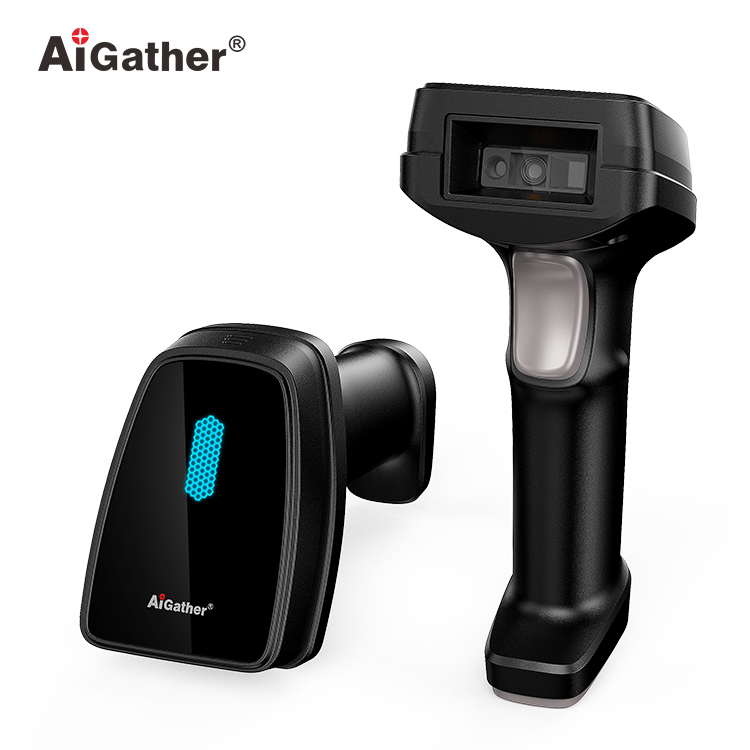

A-9519BTN Bluetooth 2D Barcode Scanner

AiGather

1. Equipped with the advanced decoding algorithm patented by AiGather, easy to read barcode, qr code, DM, PDF417, etc. 2. Large-capacity battery, can continue reading more than 80,000 codes. 3. 2.4G wireless transmission, automatic frequency hopping and anti-interference, the effective transmission distance in open space can reach 100 meters; and Bluetooth can reach 50m in open space.

Features

Performance Parameter

Light Source

LED White light

Aiming Light

Green Dot

Image Sensor

800*600 pixels

Resolution(maximum)

3mil

Minimum Print Contrast

15% Reflection Difference

Image Field of View

D54°/H45°/V36°

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED light&Buzzer(adjustable tone and volume

Typical depth of Field

Precision Barcode  Depth of Field

3.34mil CODE 128  30mm—60mm

5mil  CODE128  30mm—100mm

3.34mil EAN-13  35mm—60mm

5mil  EAN-13  30mm—100mm

13.34mil EAN-13  30mm—230mm

5mil  PDF417  30mm—100mm

10mil QR   30mm—150mm

10mil DM   20mm—125mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter

Current

Working currentStandard): Standard):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

Touch discharge: 8 kV; Air discharge: 15kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Particulate and water sealing

IP52

Temperature

Working: -20 to 40 °C

Storage/Transport: -40 to 65 °C

Humidity(non-condensing)

5 - 95%

Ambient light

Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux

Cordless Parameter

Transmission distance

100m for 2.4G; 50m for Bluetooth (in open space)

Communication mode

Wireless real-time transmission/wired transmission/storage mode

Battery capacity

2000mAh

Continuous working time

12H

Charging time

4-5H

Warranty

24 months


Application
