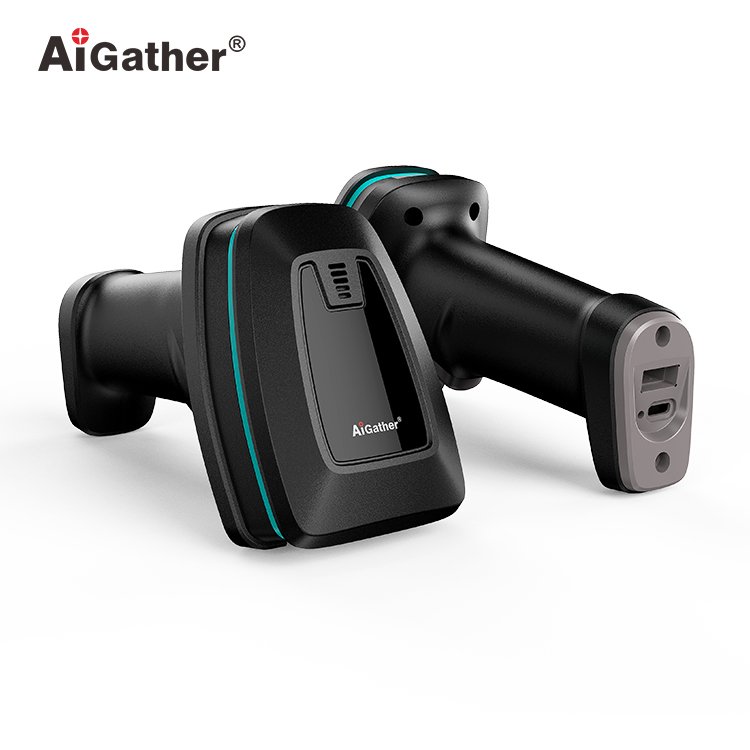

A-9522SR 2.4G Wireless 2D Barcode Scanner

AiGather

A-9522SR Features: 1. The layered appearance and the mirror design on the top create a new aesthetic experience. 2. Equipped with the advanced decoding algorithm patented by AiGather, easy to read barcode, qr code, DM, PDF417, etc. 3. The rear end is designed with a USB receiver storage compartment, which can effectively prevent loss. 4. Long depth of field, large field of view, easy to scan long-distance barcode.

Features

Performance Parameter

Light Source

LED White light

Aiming Light

Green Dot

Image Sensor

1280*800 pixels

CPU

1.2G Dual core

Resolution(maximum)

4mils

Minimum Print Contrast

20% Reflection Difference

Image Field of View

Horizontal: 50°; Vertical: 38°

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED light&Buzzer(adjustable tone and volume)

Typical depth of Field

Precision            Barcode              Depth of Field

3.34mil               CODE 39            60mm—160mm

3.34mil               EAN-13               90mm—150mm

5mil                    CODE39             70mm—240mm

5mil                    EAN-13               70mm—230mm

13mil                  UPC-A                40mm—450mm

5mil                    PDF417              65mm—210mm

5mil                    QR                      75mm—140mm

10mil                  QR                      45mm—290mm

10mil                  DM                      30mm—260mm

20mil                  QR                      20mm—480mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter

Current

Working current(Standard):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Temperature

Working: 0 to 40 °C

Storage/Transport: -40 to 70 °C

Humidity(non-condensing)

5 - 95%

Ambient light

Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux

Cordless Parameter

2.4 Transmission distance

Open space 100 meters

Communication mode

Wireless real-time transmission/wired transmission/storage mode

Battery capacity

2000mAh

Continuous working time

>12H

Charging time

4-5H


Application
