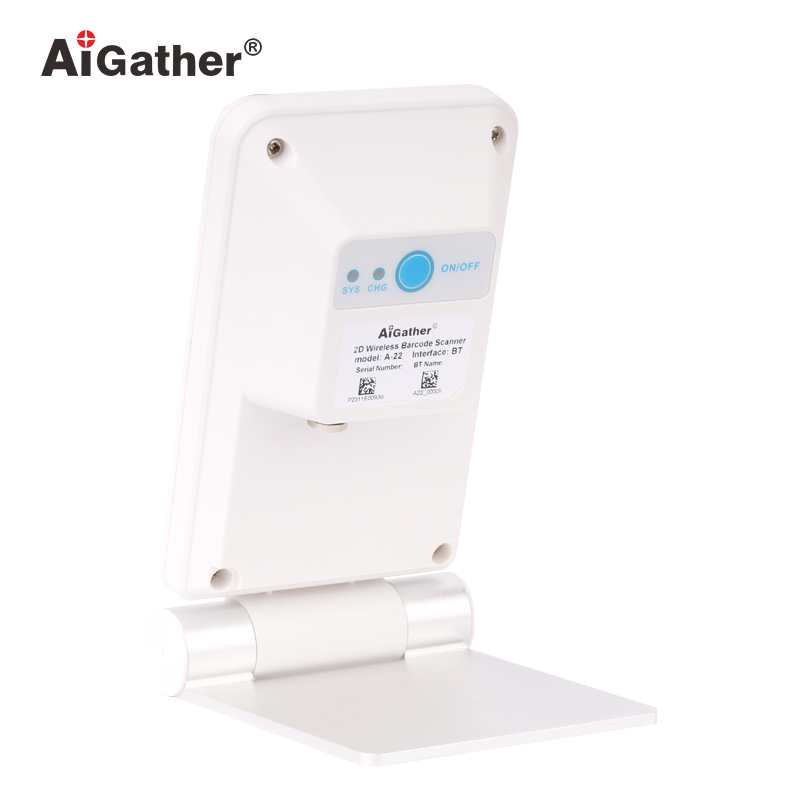

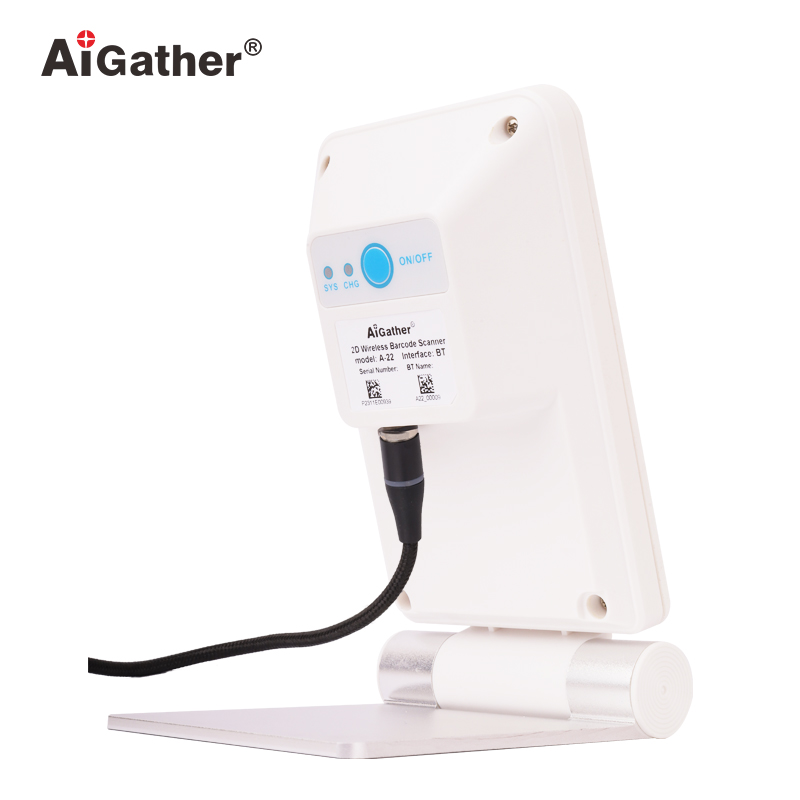

A-22 Desktop Wireless 2D Barcode Scanner
AiGather
A-22 is equipped with AiGather's patented advanced decoding algorithm and has a large reading angle, which makes it an extremely smooth decoding experience during scanning.
Features
A-22 Features
1. A-22 is equipped with AiGather's patented advanced decoding algorithm and has a large reading angle, which makes it an extremely smooth decoding experience during scanning;
2. Quickly read screen codes and paper codes, supporting to read paper codes with a printing contrast of more than 20% and various damaged, wrinkled, or poor-quality product barcodes;
3. Ultra-thin and foldable design achieves excellent operating comfort;
4. Supports a variety of keyboard languages, no need driver, just plug-and-play, and compatible with all major operating systems;
5. The large-capacity battery of 2700 mAh can continuously read 120,000 commodity barcodes when fully charged;
6. Two wireless transmission methods, 2.4G and Bluetooth, are available.
A-22 Specification
Specification |
A-22 |
|
Common Parameter |
Light Source: LED White light |
Aiming Light: NO |
Reading Angle: Pitch: +/-65°; Roll: +/-360°; Skew:+/-60° |
Ambient Light: 100,000 Lux |
|
IP Level: IP 52 |
Drop Resistance: 1.2m |
|
Decoding Capability |
1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR CodeStack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Scanner Size |
77*32*75mm |
|
Image Sensor |
640*480 pixels |
|
Min. Print Contrast |
20% |
|
Precision |
4mil |
|
Imager Field of View |
D50°/H38°/V30° |
|
Shutter Mode |
Global |
|
5mil CODE128 |
40-110mm |
|
5mil EAN-13 |
40-110mm |
|
13.34mil EAN-13 |
65-300mm |
|
5mil PDF |
40-100mm |
|
10mil PDF |
30-210mm |
|
20mil DM |
20-110mm |
|
Operating Voltage |
5V ±5% |
|
Operating Current |
Less than 280mA |
|
Standby Current |
230mA |
|
Interface |
USB HID; USB COM; RS-232, OPOS/JPOS (optional) |
|
ESD |
Air discharge: 15Kv; Contact discharge: 8Kv |
|
2.4G Radio |
60~80m（in open space） |
|
Bluetooth Radio |
20~30m（in open space） |
|
Bluetooth Type |
HID; SPP; BLE |
|
Battery Type |
2700mAh |
|
Charging Way |
Type-C Port (5V 1A) |
|
Charging Time |
4.5H |
|
Scans Per Full Charge |
Continuous reading commodity code with 120,000 times |
|
