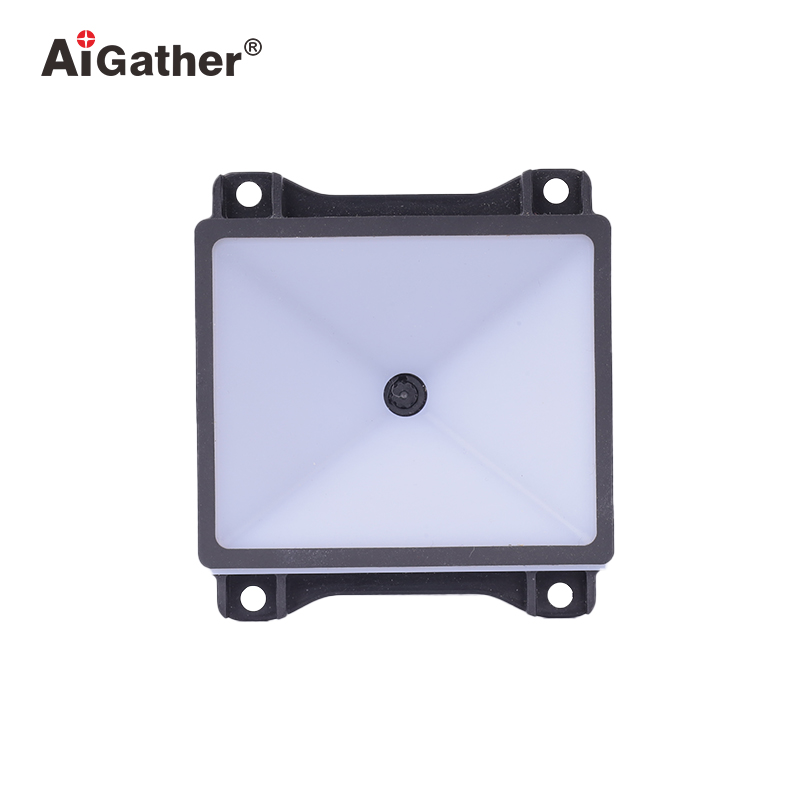

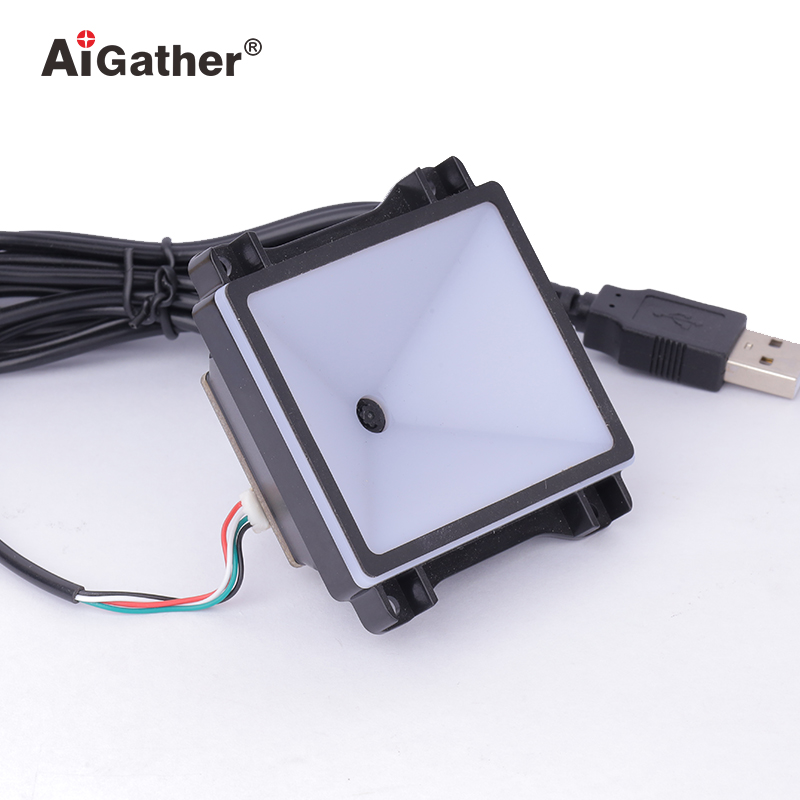

A-100Z Embedded 2D Barcode Scanning Module

AiGather

A-100Z also called payment code scanning module, it usually use in kiosk, vending machine, subway toll gate, pos system or self-service ordering mahine.

Features

Specification:

Scan Performance	Sensor		640×480 CMOS global shutter
	Illumination		LED white light
	Reminder Light		LED green light
	Decoding Capability	2D	QR Code, Micro QR, Data Matrix, PDF417
		1D	Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11
			ITF-25(Interleaved 2 0f 5), Code39, Code93, Code32 , Codabar
			Matrix 2 of 5, Industrial 25, IATA 25, MSI Plessey
	Resolution		≥5mil
	Depth of Field	EAN-13	10mm-120mm(13mil, 13bits)
		Code39	10mm-35mm(5mil, 7bits)
		Code128	10mm-150mm(13mil, 10bits)
		QR Code	0mm-100mm(15mil, 30bits)
		Data Marix	10mm-45mm(10mil, 100bits)
		PDF 417	10mm-45mm(6.67mil, 30bits)
	Print contrast ratio		≥15%
	Reading Angle		Pitch: 360°; Roll(Tilt): ±40°; Skew (Yaw): ±40°
	Field of view		Horizontal 62°, Vertical 48°
Electrical Parameter	Interface		TTL-232, USB(HID-KBW, VCOM), RS-232
	Size		64.5mm60mm30mm
	Working Voltage	Current/Power consumption	DC 3.3V/100mA/330mW
Environmental Parameter	Working Temperature		-20℃~+60℃
	Storage Temperature		-30℃~+70℃
	Humidity		5%~95% (non-condensing)
	Ambient light		0~100,000LUX

Note:

*Test conditions: Ambient temperature = 23°C; Ambient illumination = 360LUX fluorescent lamp; Paper codes use customized test barcode or commodity barcode;

*Declination test conditions: test distance=(min. depth of field + max. depth of field)/2; 2D: QR CODE; 10 Bytes; min. barcode width=15 mil; PCS=0.8;

*Specifications are subject to change without notice
