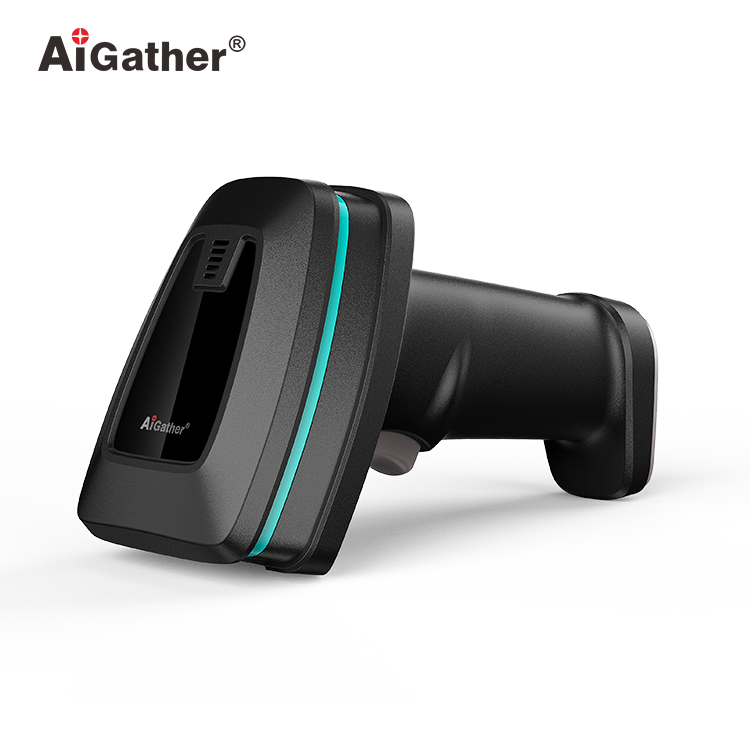

A-9520SR Wired 2D Barcode Scanner


Feature: 1. Equipped with AiGather's patented advanced decoding algorithm, it can quickly and accurately read damaged codes, stained codes, wrinkled codes and color barcode. 2. Long depth of field, large field of view, easy to scan long-distance barcode, can read 13mil commodity barcodes at a distance of 450mm, and 3mil low-density barcode also have excellent reading effects;


Performance Parameter

Light Source

LED White light

Aiming Light

Green Dot

Image Sensor

1280*800 pixels (Global Shutter)


1.2G Dual core



Minimum Print Contrast

20% Reflection Difference

Motion Tolerance


Image Field of View

Horizontal: 50°; Vertical: 38°

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED light&Buzzer(adjustable tone and volume)

Typical depth of Field

Precision   Barcode       Depth of Field

3.34mil   CODE 39          60mm—160mm

3.34mil   EAN-13      90mm—150mm

5mil    CODE39      70mm—240mm

5mil    EAN-13      70mm—230mm

13mil        UPC-A      40mm—450mm

5mil     PDF417      65mm—210mm

5mil      QR        75mm—140mm

10mil      QR      45mm—290mm

10mil      DM      30mm—260mm

20mil      QR      20mm—480mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter


Working current(Standard): 80 mA ; Standby current(Standard): 130 mA

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.


Working: -10 to 50 °C

Storage/Transport: -20 to 65 °C


5 - 95%

Ambient light

Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux

Product Size



RS-232; USB HID; USB COM; HID POS available as per customer’s needs


Support multi-language transmission, compatible with major operating systems, support the editing of barcode data.


18 months
