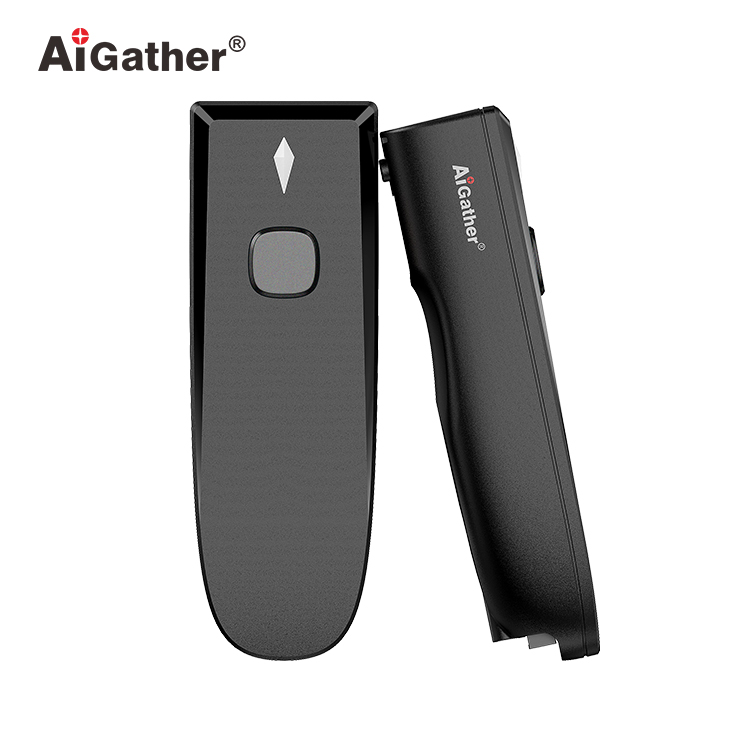

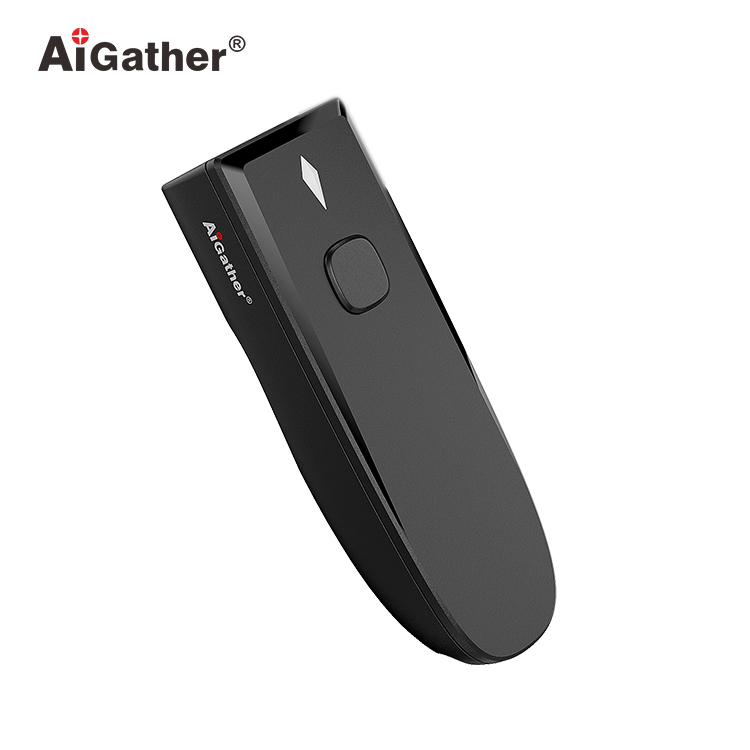

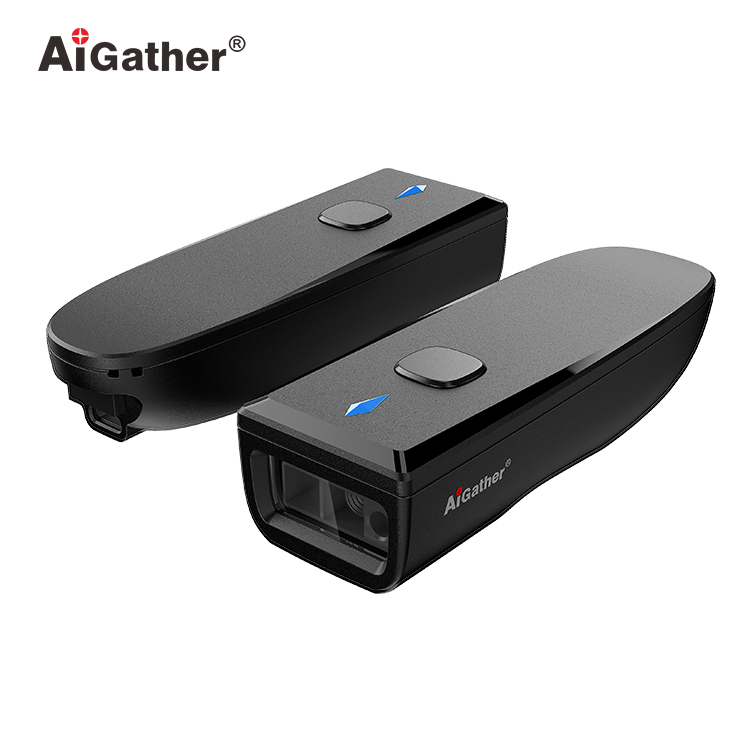

A-M2 Pocket Bluetooth 2D Barcode Scanner


Features: 1. Type-C cable for charging and transmission. 2. Internal 2.4G Receiver hole. 3. The rear is designed with a reset button. 4. Bluetooth+Wired(standard), 2.4G is optional. 5. Transmission distance: 50m for 2.4G; 15m for Bluetooth. 6. 4M storage memory, can save over 100,000 barcodes.


Performance Parameter

Light Source

LED White light

Aiming Light

Green Dot

Image sensor

640*480 pixels



Print contrast ratio(minimum)

20% Reflection Difference

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±45°; Skew (Yaw): ±45°

Decoding Capability

1D/Linear Code: Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, ITF-25(Interleaved 2 0f 5), Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA 25, MSI Plessey

2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec

Reading Indicators

LED light&Buzzer(adjustable tone and volume)

Typical depth of Field

EAN-13      40mm-300mm  (13mil, 13bits)

Code39     40mm-113mm (5mil, 7bits)

Code128      50mm-320mm  (13mil, 10bits)

QR Code      13mm-170mm  (15mil, 30bits)

Data Matrix    20mm-120mm (10mil, 100bits)

PDF 417       50mm-110mm  (6.67mil, 30bits)

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Electrical Parameter


Working current(Standard): 210 mA

Input Voltage

3.3 VDC

Environmental Parameter

ESD protection(Air discharge)

8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.


Working: 0 to 40 °C

Storage/Transport: -40 to 70 °C


5 - 95%

Ambient light

0 to 100,000 lux

Cordless Parameter

2.4 Transmission distance

Open space 50 meters (Optional)

Bluetooth connection

15m transmission distance(basic on open space)

Communication mode

Wireless real-time transmission/wired transmission/storage mode

Battery capacity


Continuous working time

Full power can read over 8W commodity barcodes

Charging time
