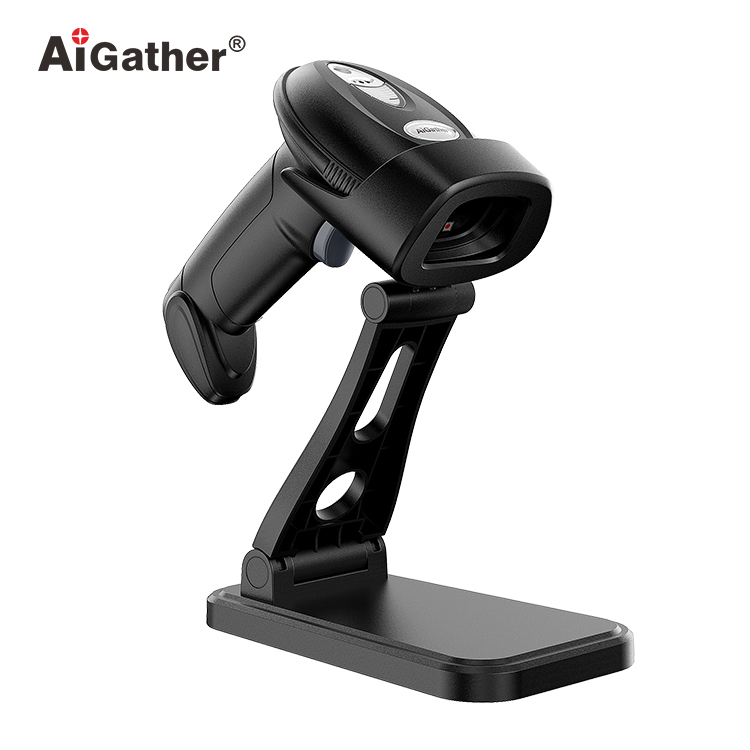

A-9566 Industrial Wired 2D Barcode Scanner


A-9566 is a product specially designed by AiGather for manufacturing and commercial application environments that require high-precision barcode scanning. It has a 100-pixel image sensor, high-speed motion tolerance, multi-spectral technology, and a decoding algorithm with independent intellectual property rights. It has excellent reading performance for barcodes generated by laser etching, machine impact, inkjet printing, and chemical corrosion on the surface of different materials. The A-9566


Performance parameter

Light source

LED red light (standard); red and white double color; red and blue double color (optional)


1280*800 pixels

Reading accuracy


Print contrast ratio(minimum)


Motion tolerance


Reading angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded
2D: Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;GS1 DataBar Composite; MicroPDF417; PDF417

Reading Indicators

LED light&Buzzer(adjustable tone and volume)

Typical depth of Field

Precision Barcode  Depth of Field

3.34mil CODE128  50mm—110mm

5mil  CODE128  40mm—120mm

3.34mil EAN-13  50mm—120mm

5mil  EAN-13  40mm—120mm

13.34mil EAN-13      20mm—190mm

5mil  PDF417  50mm—120mm

10mil      PDF417      25mm—170mm

10mil      DM       40mm—150mm

20mil      DM       20mm—190mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Physical characteristics


Working status (nominal):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection(Air discharge)

(Discharge in the air) 8 kV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.


Storage/transportation: -40 to 70 °C

Operating temperature

0 - 40 °C


5 - 95%

Ambient light

Indoor: 0 - 6,000 lux; Outdoor: 0 - 86,000 lux


RS-232; USB HID; USB COM;HID POS;OPOS Etc. According to customer needs


24 months
