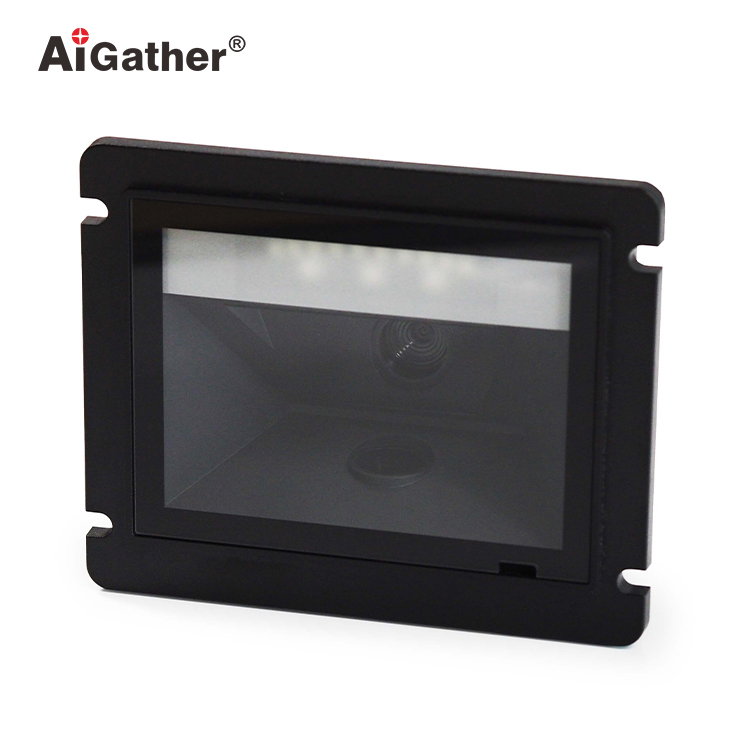

A-60 Embedded 2D Barcode Scanning Module
Embedded 2D Barcode Scanning Module
Features - Easily read all mainstream 1D&2D bar codes; - Support more than 15% printing contrast bar codes; - Wide field-of-view; - 300,000 pixels global shutter, with great speed and precision; - With its compact size, simple installation, and loud sound features; - Good choice for kiosks, gates, access control, and other equipment.
Features
Performance Parameter | |
Light Source |
LED Red light(Germany) |
Image sensor |
640*480 pixels |
Resolution(maximum) |
0.102mm / 4mils |
Print contrast ratio(minimum) |
≥20% |
Motion tolerance |
2M/sec |
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
Decoding Capability |
1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
Reading Indicators |
LED light&Buzzer(adjustable tone and volume) |
Typical depth of Field |
Precision Barcode Depth of Field 5mil CODE128 0mm—70mm 5mil EAN-13 0mm—70mm 13.34mil EAN-13 0mm—240mm 5mil PDF417 5mm—60mm 10mil PDF417 0mm—170mm 15mil PDF417 0mm—280mm 20mil DM 5mm—80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Physical characteristics | |
Color available |
Black |
Dimensions(L*W*H) |
114.5*49.5*93.5 |
Weight |
159g |
Cable |
0.6m |
Electrical Parameter | |
Current |
Working current(Standard): Standby current(Standard): |
Input Voltage |
5 VDC (+/- 10%)/500mA |
Environmental Parameter | |
ESD protection(Air discharge) |
8 kV |
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
Particulate and water sealing |
IP52 |
Temperature |
Operation: -20 to 40 °C Storage/Transport: -40 to 70 °C |
Humidity(non-condensing) |
5 - 95% |
Ambient light |
0 -100,000 lux |
Interfaces | |
Interfaces |
RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
Warranty | |
Warranty |
24/months |
Application
