Light Source

LED White LED

Image sensor

640*480 pixels Global Shutter

Resolution(maximum)

0.102mm / 3mils

Print contrast ratio(minimum)

≥15% Reflection Difference

CPU

1.2G Dual-core

Motion tolerance

2M/sec

Image Field of View

D54°/H45°/V36°

Reading Angle

Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°

Decoding Capability

1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded.

2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code

Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked

Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.

Reading Indicators

LED/Buzzer(adjustable tone）

Typical depth of Field

Precision  Barcode     Depth of Field

3mil          CODE128  0mm—30mm

3mil          EAN-13      0mm—30mm

5mil          PDF417     0mm—30mm

5mil          CODE128  0mm—70mm

5mil          EAN-13      0mm—70mm

5mil          PDF417      0mm—65mm

13.34mil   EAN-13      0mm—180mm

10mil        CODE128  0mm—150mm

10mil        PDF417     0mm—140mm

20mil        QR             0mm—160mm

20mil        DM             0mm—140mm

(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)

Physical characteristics

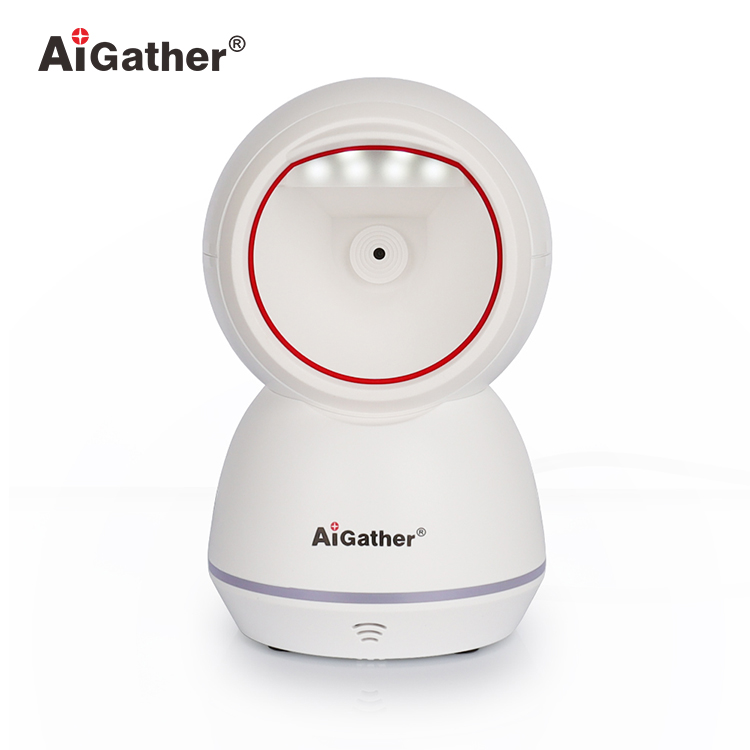

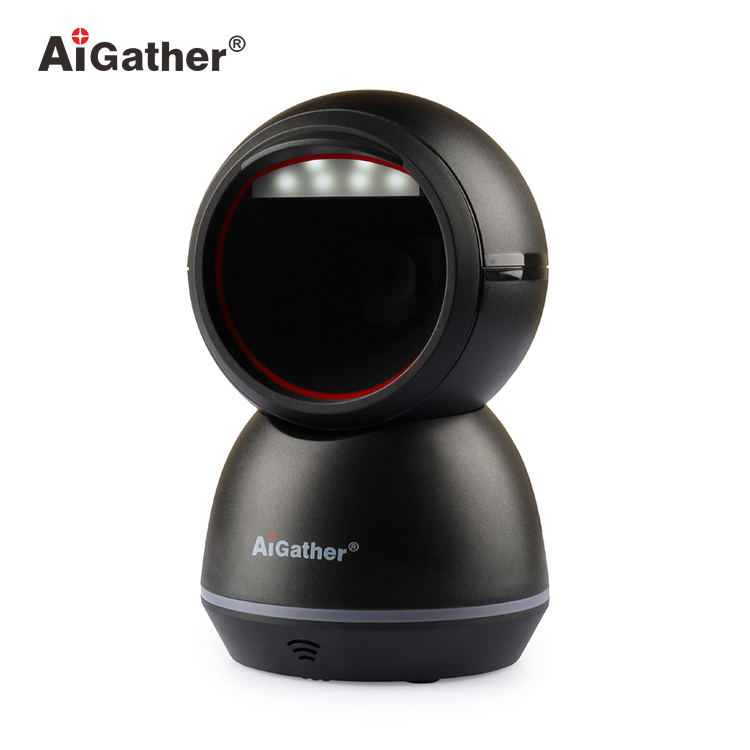

Color available

White; Black

Dimensions（L*W*H）

98*105.55*157.06mm

Weight

278g

Cable

1.8M

Electrical Parameter

Current

Working current（Standard):

Input Voltage

5 VDC (+/- 10%)/500mA

Environmental Parameter

ESD protection

Contact discharge 8 kV; Air discharge 15KV

Drop resistance

Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.

Temperature

Operation: -10 to 50 °C

Storage/Transport: -20 to 65 °C

Humidity(non-condensing)

5 - 95%

Ambient light

0 -100,000 lux

Interfaces

Interfaces

RS-232; USB HID; USB COM;HID POS available as per customer’s needs

Warranty

Warranty

2years
