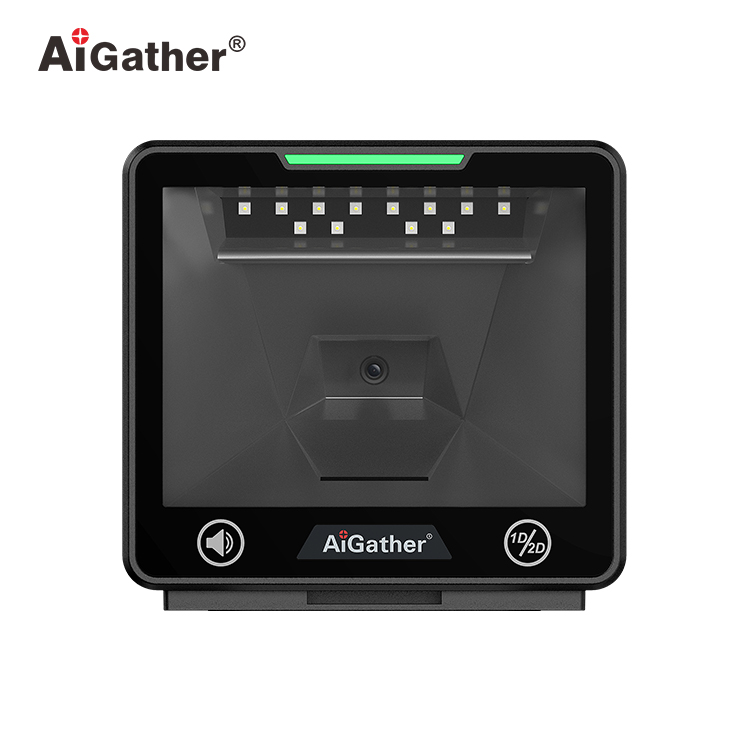

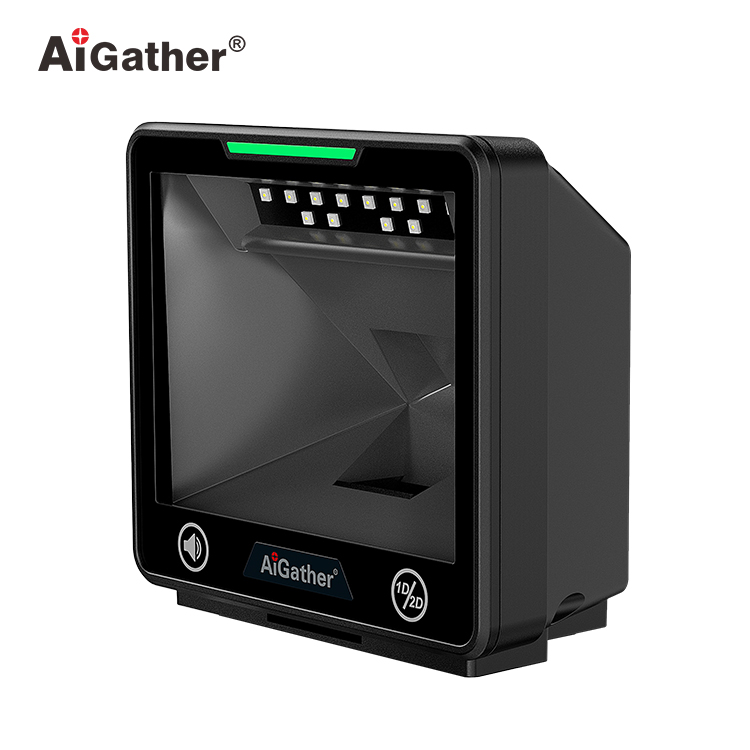

A-90 Desktop Wired 2D Barcode Scanner

Desktop 2D Barcode Scanner

A-90 is a desktop CMOS barcode scanner with stylish appearance and exquisite workmanship. Equipped with AiGather's patented advanced decoding algorithm, combined with a new decoding chip and a megapixel camera, as well as a 2M/S motion tolerance and a large reading window, it can easily handle various high-speed scanning operations.

Features

A-90 Features

And in different application scenarios, it also has excellent performance capabilities. The embedded shell design can be easily connected to the cashier counter. The clear scanning prompt sound and LED indication enable it to have accurate prompts even in noisy environments.

A-90 Specification

Specification	A-90
Light Source：	LED Red light (Osram from Germany)
Reading Angle:	Pitch: +/- 65°; Roll: +/- 360°; Skew:+/- 60°
Ambient Light:	100,000 Lux
IP Level：	IP52
Drop Resistance:	1.2m
Scanner Size	15079140mm
CPU	1.2G Dual-core
Image Sensor	1280*1024 pixels
Min. Print Contrast	20%
Precision	4mil
Imager Field of View	D50°/H42°/V32°
Shutter Mode	Global
Decoding Capability	1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR CodeStack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
5mil CODE128	0-90mm
5mil EAN-13	0-90mm
13.34mil EAN-13	0-280mm
10mil PDF417	0-260mm
10mil QR	0-110mm
20mil DM	5-110mm
Operating Voltage	5V ±5%
Operating Current
Standby Current	220mA
Interface	USB HID; USB COM; RS-232, OPOS/JPOS (optional)
ESD	Air discharge: 15Kv; Contact discharge: 8Kv

Application
