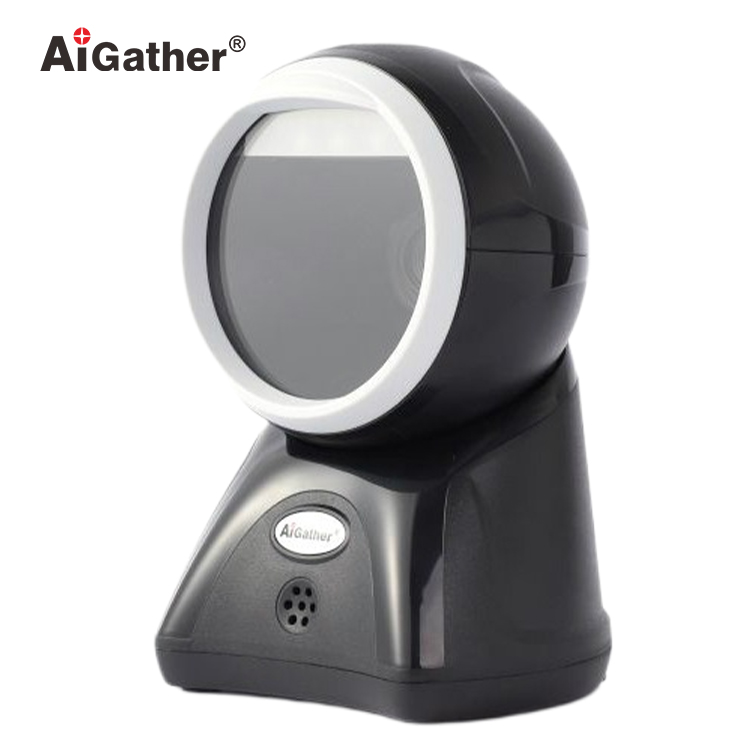

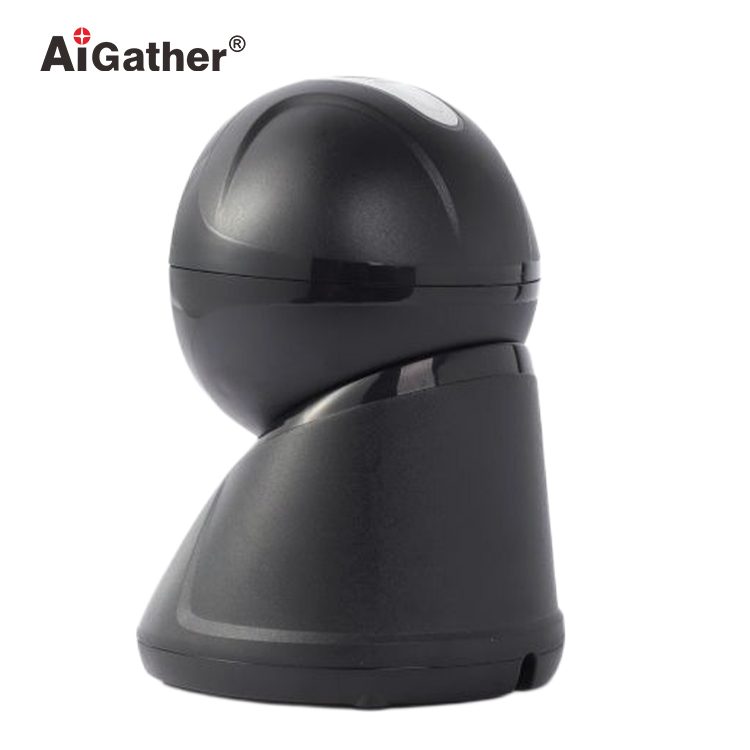

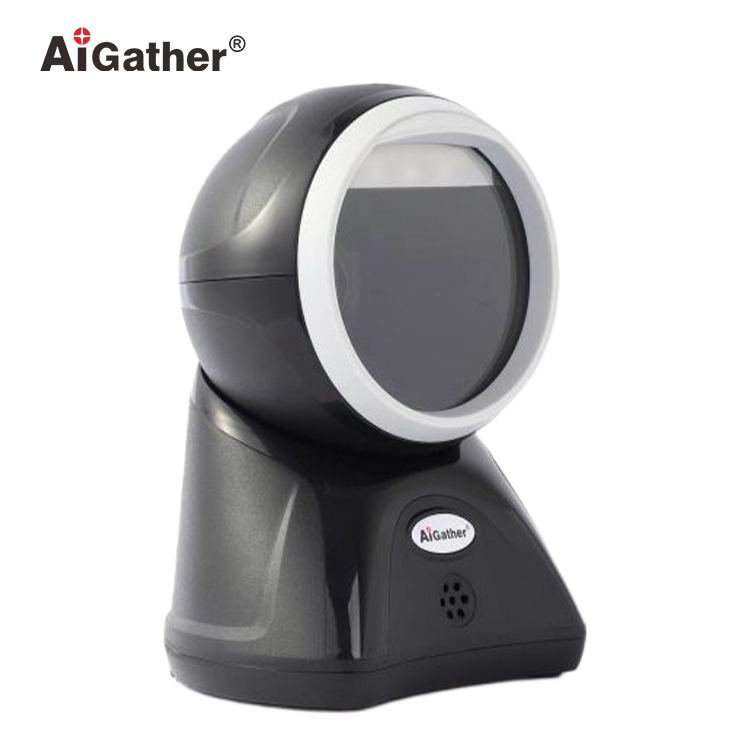

A-80 Desktop Wired 2D Barcode Scanner
Desktop 2D Barcode Scanner
Features - Wide field-of-view, Omni-directional scanning capability; - 300,000 pixels global shutter, with great speed and precision; - Fast decoding speeds at 120 FPS/s; - Minimum resolution: 4 mils (3mils supports customization.); - Easily read the paper, plastic, mobile phones, LCD displays, etc., and even high-precision, wrinkled, damaged, or poorly printed barcodes; - Bright red LEDs for illuminating scanning surfaces; - Read all mainstream 1D&2D barcodes.
Features
Performance Parameter |
A-80 | A-80+ |
Light Source |
LED Red light（Germany） |
|
Image sensor |
640*480 pixels |
|
| CPU | 1G | 1.2G Dual-core |
Resolution(maximum) |
4mil |
3mil |
Print contrast ratio(minimum) |
≥15% |
|
Motion tolerance |
2M/sec |
|
Reading Angle |
Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
|
Decoding Capability |
1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
|
Reading Indicators |
LED light&Buzzer(adjustable tone and volume） |
|
|
Typical depth of Filed (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Precision Barcode Depth of Filed 5mil CODE128 1mm—80mm 5mil EAN-13 1mm—80mm 13.34mil EAN-13 5mm—245mm 5mil PDF417 5mm—70mm 10mil PDF417 5mm—180mm 15mil PDF417 10mm—280mm 20mil DM 5mm—80mm |
Precision Barcode Depth of Field 3mil CODE128 0mm—30mm 3mil EAN-13 0mm—30mm 5mil PDF417 0mm—30mm 5mil CODE128 0mm—70mm 5mil EAN-13 0mm—70mm 5mil PDF417 0mm—65mm 13.34mil EAN-13 0mm—180mm 10mil CODE128 0mm—150mm 10mil PDF417 0mm—140mm 20mil QR 0mm—160mm 20mil DM 0mm—140mm |
Physical characteristics | ||
Color available |
Black |
|
Dimensions（L*W*H） |
112*101*164mm |
|
Weight |
313g |
|
Cable |
1.6m |
|
Electrical Parameter | ||
Current |
Working current（Standard): |
|
Input Voltage |
5 VDC (+/- 10%)/500mA |
|
Environmental Parameter | ||
ESD protection(Air discharge) |
Touch 8 kV; Air 15kV |
|
Drop resistance |
Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
|
Particulate and water sealing |
IP52 |
|
Temperature |
Operation: 0 to 40 °C; Storage/Transport: -40 to 70 °C |
|
Humidity(non-condensing) |
5 - 95% |
|
Ambient light |
0 -100,000 lux |
|
Interfaces | ||
Interfaces |
RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
|
Application
